Product Details
Reference Precision 2,45V TO18
Reference Precision 2,45V TO18
Specifications
- Category: Integrated Circuits (ICs)
- Subcategory: Voltage References / Precision Reference Regulators
- Manufacturer: GEC Plessey / Ferranti / Zarlink (depending on production source)
- Part Number: ZN458
- Device Type: Precision Reference Regulator
- Output Voltage: 2.45 V nominal
- Number of Outputs: 1
- Configuration: Two-terminal voltage reference

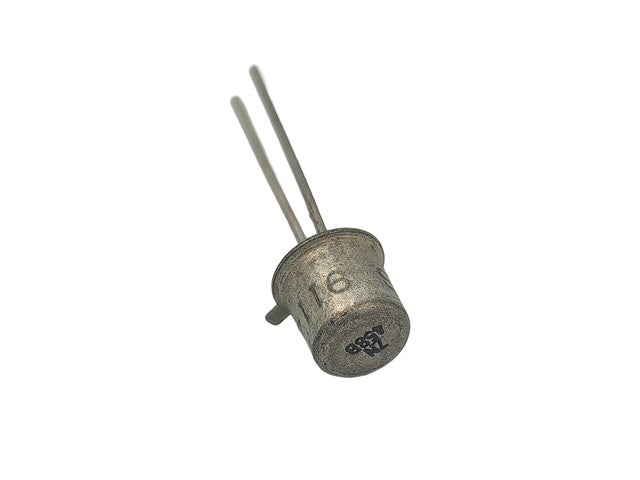

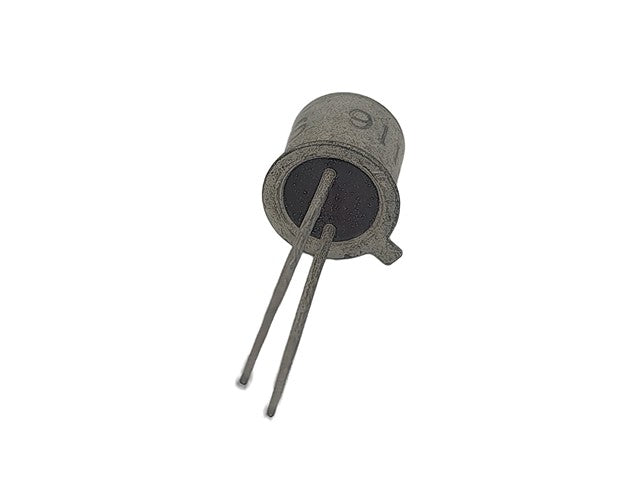

- Package: TO-18 Metal Can (2-pin)
- Mounting Type: Through Hole
- Output Voltage Tolerance: ±1.43% typical
- Maximum Voltage Deviation: 5 mV over full temperature range
- Temperature Coefficient: 0.003%/°C
- Dynamic (Slope) Resistance: 0.1 Ω typical
- Reference Current Range: 2 mA to 120 mA
- Power Dissipation: 300 mW max
- Noise Voltage: 10 µV typical
- Long-Term Stability: 10 ppm typical
- Operating Temperature: -20°C to +70°C
- Storage Temperature: -55°C to +150°C
- Part Status: Obsolete / Not recommended for new designs
Additional Information
| Device | Capacitor |
| Type | Reference | Precision | 2,45V | TO18 |
