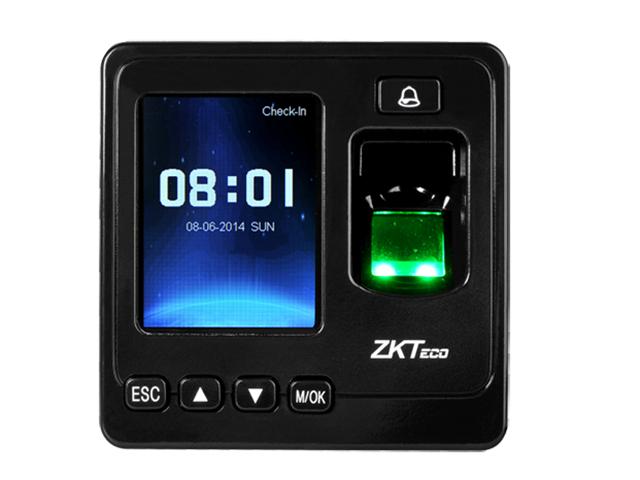

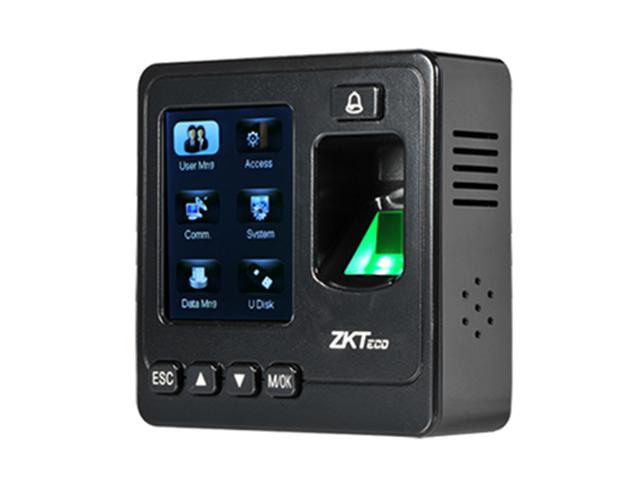

ZK Teco SF200 Standalone Fingerprint Reader used for Access Control / Time & Attendance Features

IP Based Fingerprint Reader

Features

2.4-inch color display with graphical UI for easy operation
Up to 24 user-defined schedules that can be activated on a daily bell alert (optional)
Prompt audio acceptance or rejection signals for valid or invalid fingers
Compact and lightweight, small size for 86mm (L) x 86mm (H) socket installation
TCP/IP or RS485 communication for various networking environments
Supports USB flash drive for offline data management
Built-in auxiliary input with enhanced flexibility to link with wired detector or emergency switch
Up to 15 multi-verification methods to enhance security level
Standard access control features such as Time zone, Holiday, A&C Group, Unlock combination etc.
Duress Alarm offers effective protection against duress by threats
Tamper proof switch and multiple alarm outputs
Multi-languages customizable

Model : SF100
LCD : 2.4-inch TFT (320 x 240) Color Screen
Fingerprint Sensor : ZK Optical Sensor (500DPI)
Algorithm Version : ZKFinger VX10.0
Communication : TCP/IP, RS485, USB Host
Fingerprint Capacity : 1,500
Card Capacity : 5,000
Records Capacity : 80,000
Access Control Interface : Electric lock, Door sensor, Alarm, Exit button, Doorbell
Wiegand Signal : Wiegand input & output
Aux. Input : 1ea for linkage function
Power Supply : DC 12V/3A
Operating Temperature : 0 ~ 45°C (32°~113°F)
Operating Humidity : 20 ~ 80%

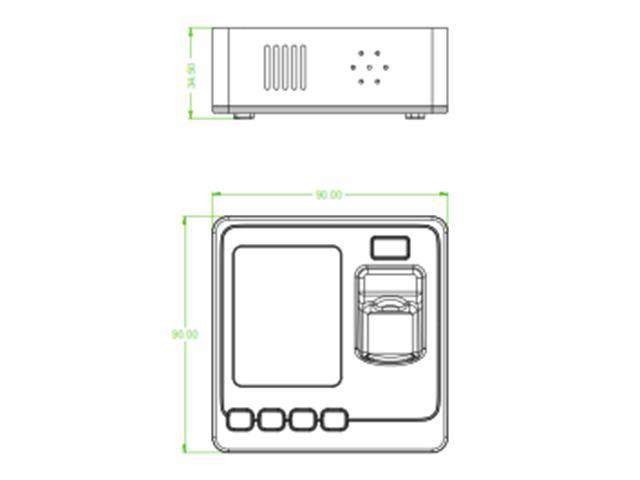

Dimension(W x L x H) : 90 x 90 x 34.5mm

Device	Fingerprint Reader
Type	IP Based \| Network \| Standalone Mode
Highlights	Works with Network and Standalone Mode
