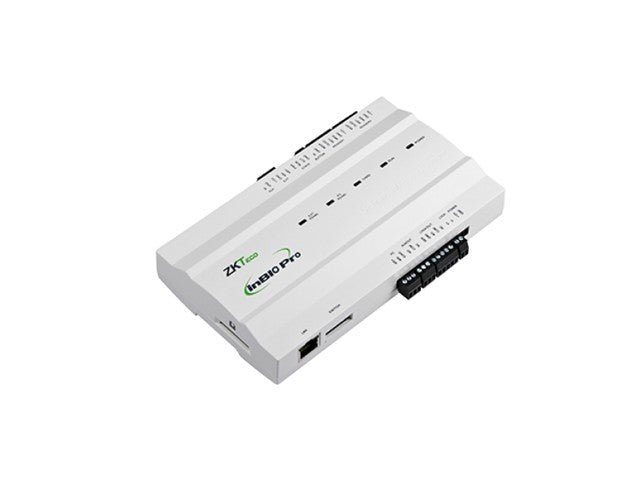

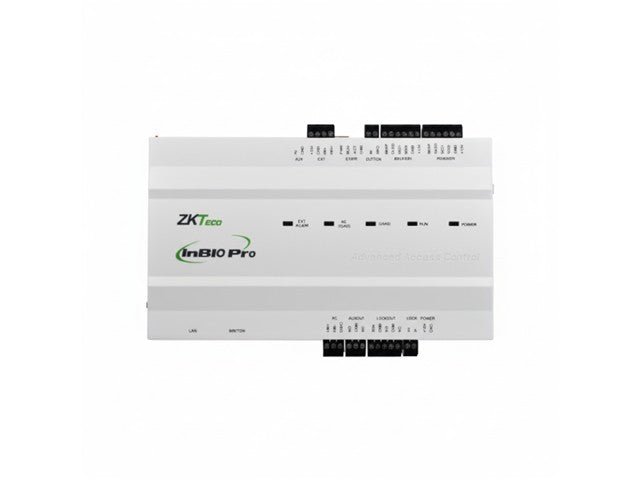

ZK TECO INBIO 160 Pro Plus One Door Controller
INBIO 160 Pro Plus One Door Controller
Specifications
| Model |
InBio 160 Pro Plus |
| Type |
1-Door IP-Based Access Control Panel |
| Operating System |
Linux OS |
| CPU |
Single-core 1.0 GHz |
| Memory |
128 MB RAM / 256 MB Flash |
| Authentication Methods |
Card / PIN / Fingerprint / Face / QR Code |
| User Capacity |
100,000 users |
| Card Capacity |
100,000 cards |
| Fingerprint Capacity |
20,000 templates |
| Face Capacity |
3,000 templates |
| QR Code Capacity |
100,000 (dynamic/static) |
| Transaction Capacity |
500,000 logs |
| Doors Controlled |
1 Door |
| Readers Supported |
2 (RS-485 or Wiegand) |
| Reader Types |
RS-485, Wiegand (26/34/66-bit) |
| Inputs |
3 (Exit Button, Door Sensor, AUX) |
| Outputs |
2 (Lock Relay + AUX Relay) |
| Communication |
TCP/IP |
| Interfaces |
RS-485, Wiegand |
| Power Supply |
9.6V – 14.4V DC |
| Operating Temperature |
0°C to 45°C |
| Operating Humidity |
20% – 80% RH (non-condensing) |
| Dimensions (L×W×H) |
185.12 × 106 × 36.07 mm |
| Weight (Net) |
~0.39 kg |
| Mounting |
Wall mount / DIN rail |
| Supported Software |
ZKBio CVSecurity |
| Encryption |
AES 256-bit (data), AES 128-bit (communication) |
