Product Details
ZK Teco F17 Ethernet Connection Based Fingerprint Reader used for Access Control/time & Attendance Features ( To be Installed by Registered ZK Teco Installer)
Ethernet Connection Based Fingerprint Reader
Specifications
- Fingerprint Sensor : Infrared Detection Fingerprint Sensor
- Algorithm Version : ZK Finger 10.0
- Communication : TCP/IP, RS485, USB Host
- Fingerprint Capacity : 3,000 Fingerprints
- Card Capacity : 30,000 Cards
- Log Capacity : 100,000 Transactions
- RF Card : EM(standard)
- Authentication : Finger/PIN/Card
- Wiegand Signal : Wiegand Input&output
- Ingress Protection Rate : IP65
- Display : 128 x 64 OLED
- Keypad : 3 x 5 keypads & doorbell
- Sound and Interface : Buzzer and multi-color LED
- Operating Voltage : 12VDC 3A
- Operating Temperature : -10 °C~50 °C (14°F ~ 122°F)

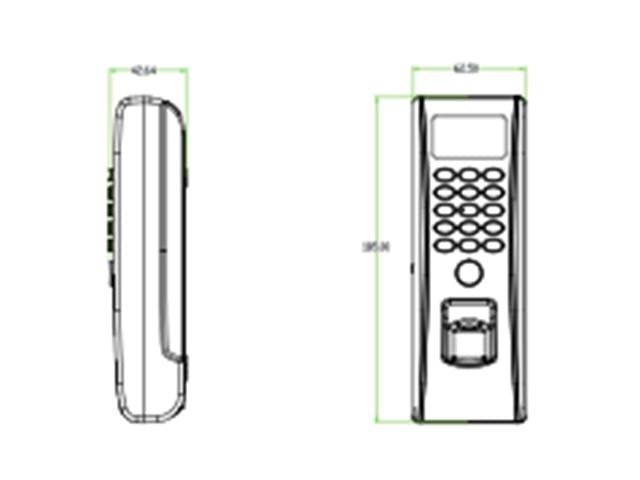

- Dimension : 62.5mm×185mm×41.5mm (W×H×D)
Downloads
Additional Information
| Device | Fingerprint Reader |
| Type | Ethernet | Connection | Based | Access Control |
