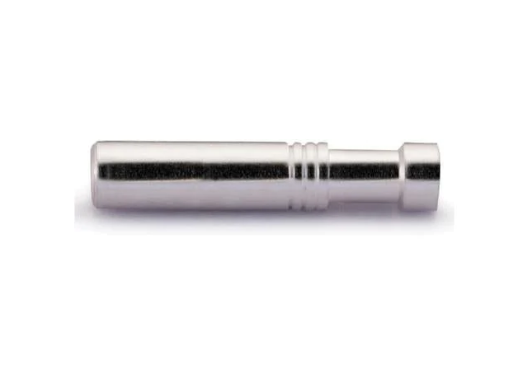

Crimp Contacts - Enhanced Female Ag - 22AWG
Article No. 1010191200311
Industry No. 09330006227
Datasheet ZCESF-0.37G
SPECIFICATIONS
| Technical characteristics | |
| Material | copper alloy |
| Surface | silver plated |
| Contact resistance | ≤1mΩ |
| Wire gauge | |
| －mm2 | 0.14-0.37mm2 |
| －AWG | 26-22 |
| Stripping length | 7.5mm |
ADDITIONAL INFORMATION
| Device | Crimp Contacts |
| Type | Enhanced | Female | Ag |
