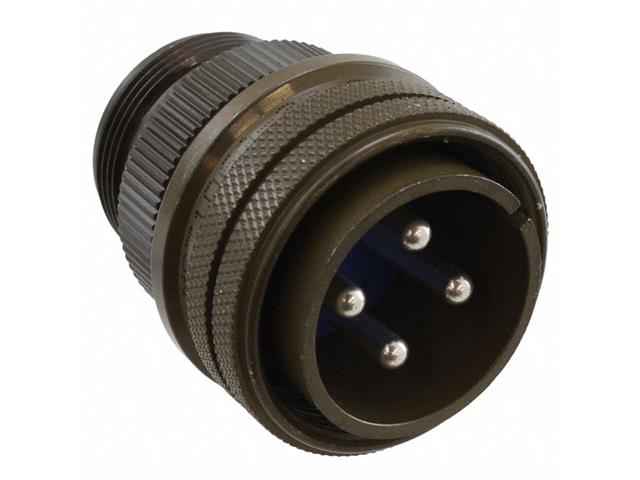

Circular Connector MIL-DTL-5015 Style Screw Lock Cable End Plug Optional Cable Clamp 4 Pole 2x #12/2x #8Contacts. Male Solder. 23A/46A 500VAC/700VDC (MS3106A22-4P)(97-3106A-22-4P)
Circular Connector MIL-DTL-5015
Specifications
| RoHS: |
N |
|
4 Position |
|
Pin (Male) |
|
22-04 |
|
Plugs |
|
22 |
|
In-Line |
|
MIL-DTL-5015 |
|
Solder |
|
Free Hanging |
|
23 A, 46 A |
|
Silver |
|
Copper Alloy |
|
MS 5015 |
| Brand: |
Amphenol Industrial |
| Mating Style: |
Bayonet |
| Mounting Angle: |
Straight |
| Product Type: |
Circular MIL Spec Connector |
| Shell Material: |
Aluminum Alloy |
| Shell Plating: |
Olive Drab Zinc |
| Subcategory: |
Circular Connectors |
| Tradename: |
5015 |
| Wire Gauge: |
10 AWG to 8 AWG, 14 AWG to 12 AWG |
Additional Information
| Device |
Connector |
| Type |
MIL-DTL-5015 | Circular |
