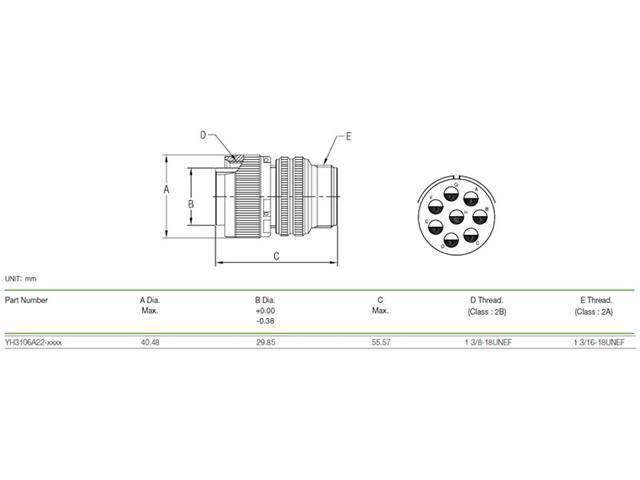

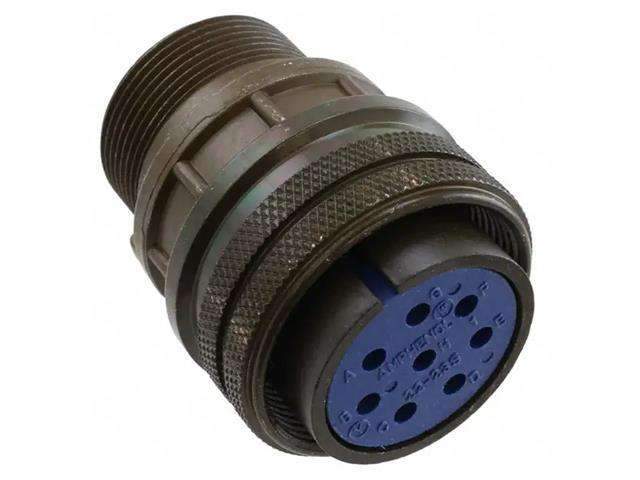

Circular Connector MIL-DTL-5015 Style Screw Lock Cable End Plug Optional Cable Clamp 8 Pole #12 Contacts. Female Solder. 23A 500VAC/700VDC (MS3106A22-23S)(97-3106A-22-23S)
MIL-DTL-5015 Circular Connector
Specifications
| RoHS: |
N |
|
8 Position |
|
Socket (Female) |
|
22-23 |
|
Plugs |
|
22 |
|
In-Line |
|
MIL-DTL-5015 |
|
Solder |
|
Free Hanging |
|
23 A |
|
Silver |
|
Copper Alloy |
|
MS 5015 |
| Brand: |
Amphenol Industrial |
| Mating Style: |
Bayonet |
| Mounting Angle: |
Straight |
| Product Type: |
Circular MIL Spec Connector |
| Qualification: |
EREL |
| Shell Material: |
Aluminum Alloy |
| Shell Plating: |
Olive Drab Zinc |
| Subcategory: |
Circular Connectors |
| Tradename: |
5015 |
| Voltage Rating: |
1.25 kV, 700 V |
| Wire Gauge: |
14 AWG to 12 AWG |
Additional Information
| Device |
Connector |
| Type |
MIL-DTL-5015 | Circular |
