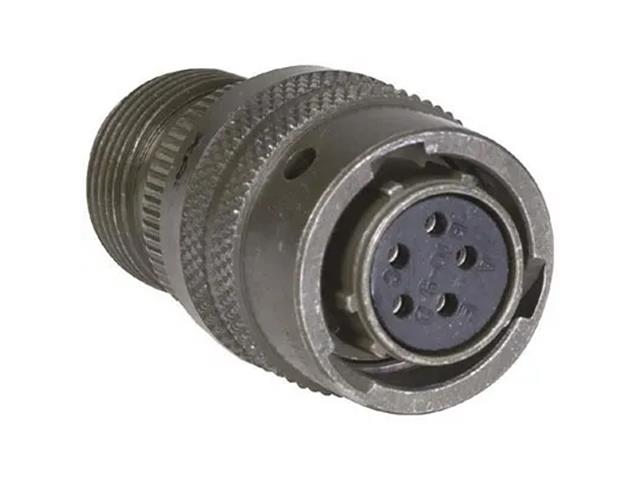

Circular Connector MIL-DTL-5015 Style Screw Lock Cable End Plug Optional Cable Clamp 6 Pole 1x #16/5x #12 Contacts. Female Solder. 13A/23A 500VAC/700VDC (MS3106A20-17S)(97-3106A-20-17S)
MIL-DTL-5015 Circular Connector
Specifications
| RoHS: |
N |
|
6 Position |
|
Socket (Female) |
|
20-17 |
|
Plugs |
|
20 |
|
In-Line |
|
MIL-DTL-5015 |
|
Solder |
|
Free Hanging |
|
13 A, 23 A |
|
Silver |
|
Copper Alloy |
|
MS 5015 |
| Brand: |
Amphenol Industrial |
| Mating Style: |
Bayonet |
| Mounting Angle: |
Straight |
| Product Type: |
Circular MIL Spec Connector |
| Shell Material: |
Aluminum Alloy |
| Shell Plating: |
Olive Drab Zinc |
| Subcategory: |
Circular Connectors |
| Tradename: |
5015 |
| Wire Gauge: |
14 AWG to 12 AWG, 22 AWG to 16 AWG |
Additional Information
| Device |
Connector |
| Type |
MIL-DTL-5015 | Circular |
