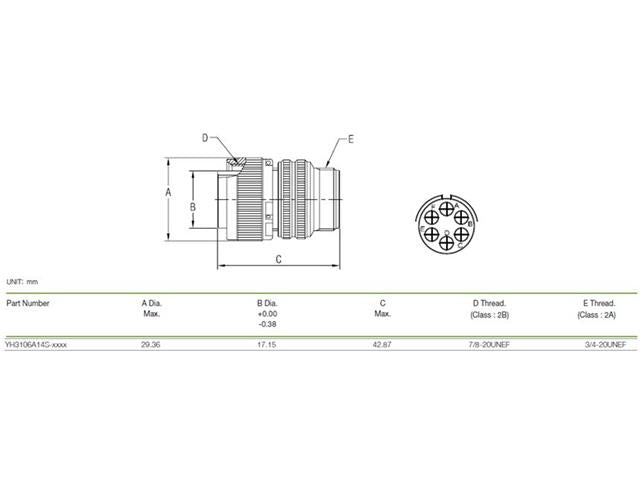

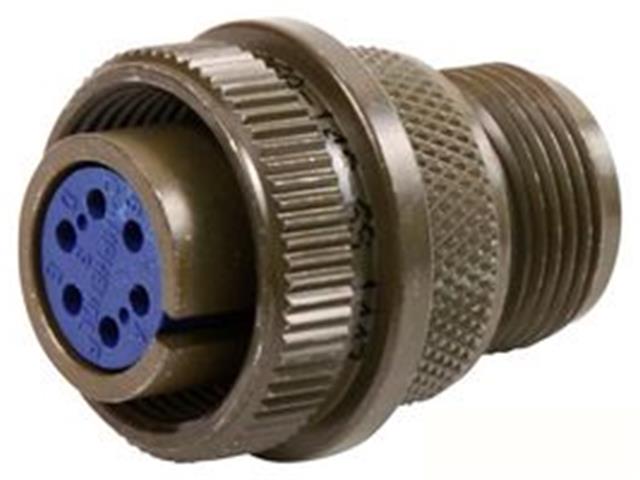

Circular Connector MIL-DTL-5015 Style Scw Lok Cable End Plug Optional Cabl Clamp 6 Pol #16 Cont. Female Soldr. 13A 500VAC/700VDC (MS3106A14S-6S)(97-3106A-14S-6S) |
CIRCULAR CONNECTOR MIL-DTL-5015 STYLE
Device |
Connector |
Type |
Screw Lock | Cable End Plug | Optional Cable Clamp | 6 Poles |
Highlights |
Suitable Cable Clamp/Bush - XY3057/3420-6A |
Gender |
Female |
No. of Contacts |
16 |
No. of Pins |
6 |
Mates With |
XY3102A-14S-6P |
Locking System |
Screw Lock |
Termination |
Solder |
Electrical Rating |
13A 500VAC/700VDC |
