Product Details

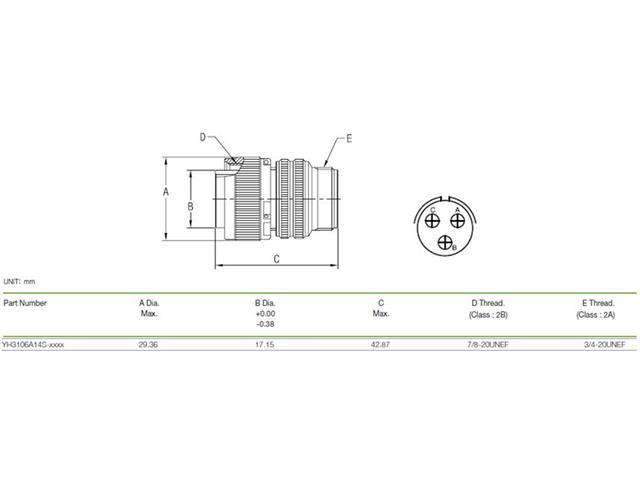

| Circular Connector MIL-DTL-5015 Style Scw Lok Cable End Plug Optional Cabl Clamp 3 Pol #16 Cont. Female Soldr. 13A 500VAC/700VDC (MS3106A14S-1S)(97-3106A-14S-1S) |
CIRCULAR CONNECTOR MIL-DTL-5015 STYLE
ADDITIONAL INFORMATION
| Device | Connector |
| Type | Screw Lock | Cable End Plug | Optional Cable Clamp | 3 Poles |
| Highlights | Suitable Cable Clamp/Bush - XY3057/3420-6A |
| Gender | Female |
| No. of Contacts | 16 |
| No. of Pins | 3 |
| Mates With | XY3102A/XY3100A-14S-1P |
| Locking System | Screw Lock |
| Termination | Solder |
| Electrical Rating | 13A 500VAC/700VDC |
