Product Details

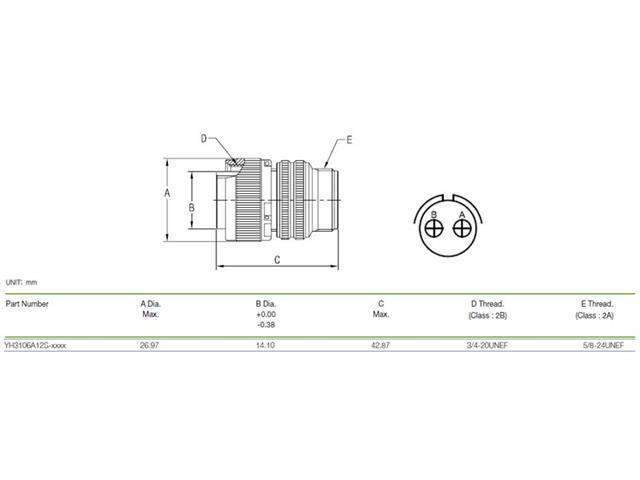

Circular Connector MIL-DTL-5015 Style Screw Lock Cable End Plug Optional Cable Clamp 2 Poles #16 Contacts Male Solder 13A 500VAC/700VDC (MS3106A12S-3P)(97-3106A-12S-3P)
Circular Connector MIL-DTL-5015 Style
Additional Information
| Device | Connector |
| Type | Screw Lock | Cable End Plug | Optional Cable Clamp | 2 Poles |
| Highlights | Suitable Cable Clamp/Bush - XY3057/3420-4A |
| Gender | Male |
| No. of Contacts | 16 |
| No. of Pins | 2 |
| Mates With | XY3102A/XY3100A-12S-3S |
| Locking System | Screw Lock |
| Termination | Swolder |
| Electrical Rating | 13A 500VAC/700VDC |
