XY3102A-20-15S
XY3102A-20-15S

XY3102A-20-15S

Dhs. 59.27
Dhs. 59.27
Sold out

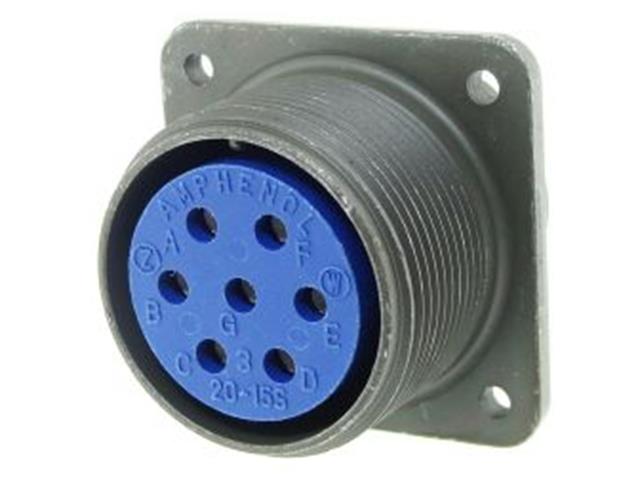

Circular Connector MIL-DTL-5015 Style Scw Lok SQ. Flange Panel Recpt 7 Pol #12 Cont. Female Soldr. 23A 500VAC/700VDC (MS3102A20-15S)(97-3102A-20-15S)

CIRCULAR CONNECTOR MIL-DTL-5015 STYLE

Device Connector
Type Screw Lock | Square Flange Panel | Receptacle | 7 Poles
Gender Female
No. of Contacts 12
No. of Pins 7
Mates With XY3106A-20-15P
Locking System Screw Lock
Termination Solder
Electrical Rating 23A 500VAC/700VDC
