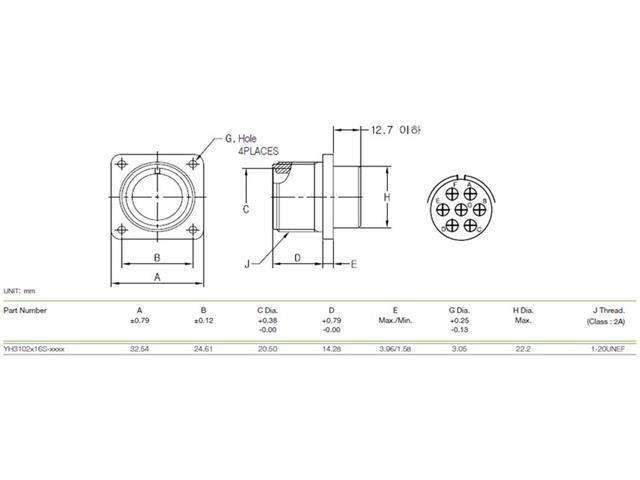

Circular Connector MIL-DTL-5015 Style Scw Lok SQ. Flange Panel Recpt 7 Pol #16 Cont. Male Soldr. 13A 500VAC/700VDC (MS3102A16S-1P)(97-3102A-16S-1P) |
CIRCULAR CONNECTOR MIL-DTL-5015 STYLE
Device |
Connector |
Type |
Screw Lock | Square Flange Panel | Receptacle | 7 Poles |
Gender |
Male |
No. of Contacts |
16 |
No. of Pins |
7 |
Mates With |
XY3106A-16S-1S |
Locking System |
Screw Lock |
Termination |
Solder |
Electrical Rating |
13A 500VAC/700VDC |
