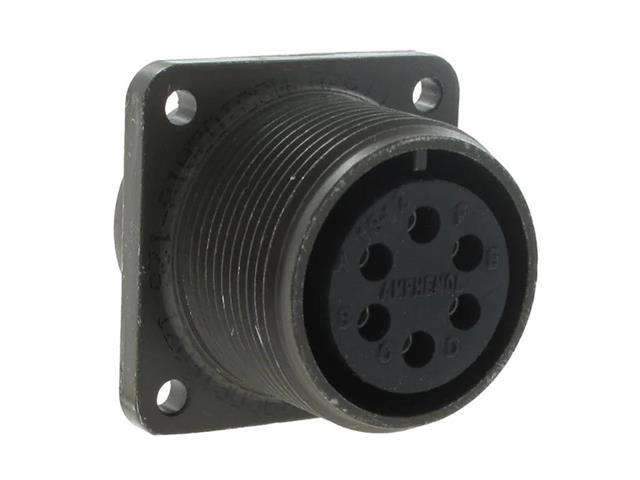

| Circular Connector MIL-DTL-5015 Style Scw Lok SQ. Flange Panel Recpt 6 Pol #16 Cont. Female Soldr. 13A 200VAC/250VDC (MS3102A14S-6S)(97-3102A-14S-6S) |
| Device | Connector |
| Type | Screw Lock | Square Flange Panel | Receptacle | 6 Poles |
| Gender | Female |
| No. of Contacts | 16 |
| No. of Pins | 6 |
| Mates With | XY3106A-14S-6P |
| Termination | Solder |
| Electrical Rating | 13A 200VAC/250VDC |
