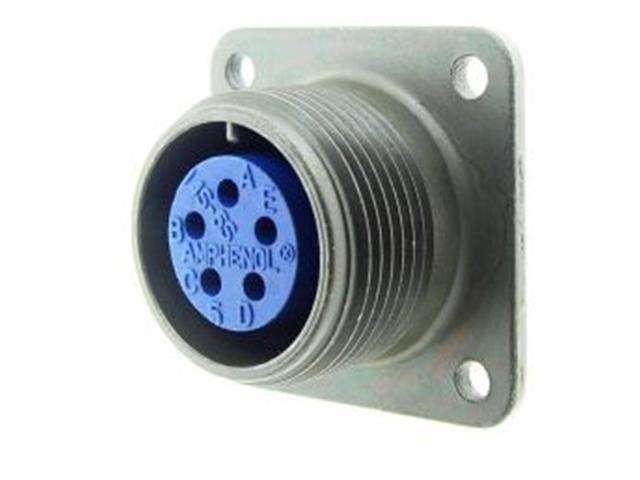

Circular Connector MIL-DTL-5015 Style Screw Lock Square. Flange Panel Receptacle 5 Pole #16 Contacts. Female Solder. 13A 200VAC/250VDC (MS3102A14S-5S)(97-3102A-14S-5S) |
evice |
Connector |
Type |
Screw Lock | Square Flange Panel | Receptacle | 5 Poles |
Gender |
Female |
No. of Contacts |
16 |
No. of Pins |
5 |
Mates With |
XY3106A-14S-5P |
Locking System |
Screw Lock |
Termination |
Solder |
Electrical Rating |
13A 200VAC/250VDC |
