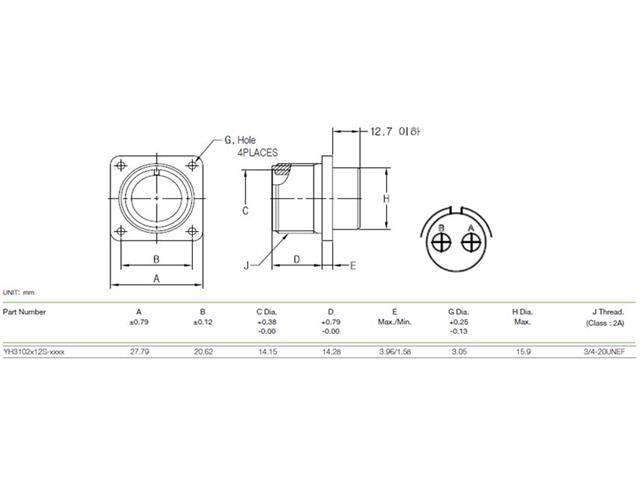

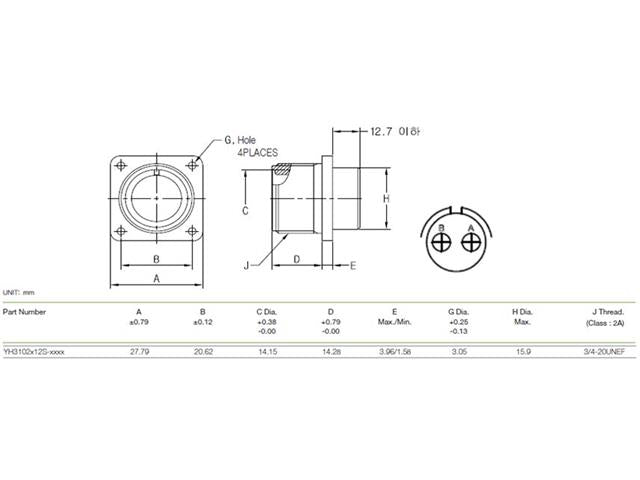

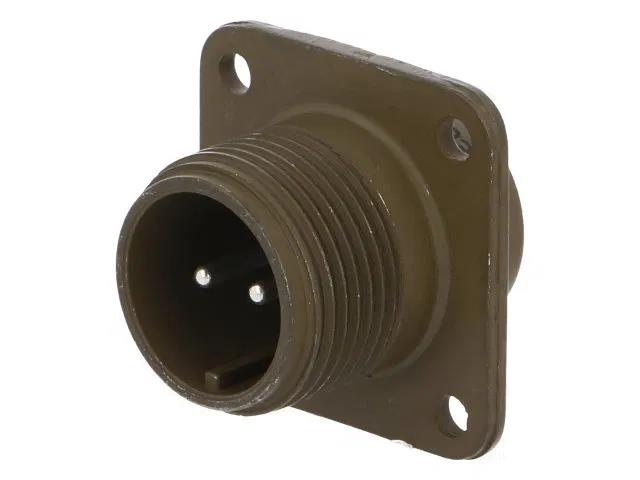

Circular Connector MIL-DTL-5015 Style Screw Lock Square. Flange Panel Receptacle 2 Pole #16 Contacts. Male Solder. 13A 500VAC/700VDC (MS3102A12S-3P)(97-3102A-12S-3P) |
Device |
Connector |
Type |
Screw Lock | Square Flange Panel | Receptacle | 2 Poles |
Gender |
Male |
No. of Contacts |
16 |
No. of Pins |
2 |
Mates With |
XY3106A-12S-3S |
Locking System |
Screw Lock |
Termination |
Solder |
Electrical Rating |
13A 500VAC/700VDC |
