Product Details

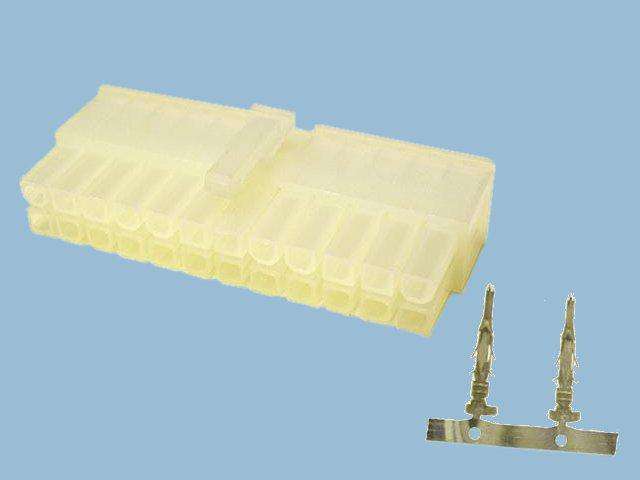

Square Female Connector with Release-Lock • 4.2mm • 24 way • 5A-250VAC
Overview
Features
- Housing : Nylon UL94V-2
- Contact : Phosphor Bronze (Tin Plated)
Specification
| Gender | Female |
| No. of Contacts | 24 |
| No. of Pins | 24 |
| Colour | White |
| Pin Plating | Tin Plated |
| Size | 4.2mm |
| Contact Resistance | 15 mΩ max |
| Insulator Resistance | 1000 MΩ min |
| Dielectric Strength | AC 1500V for 1 minute |
| Electrical Rating | 5A-250VAC |
