Product Details

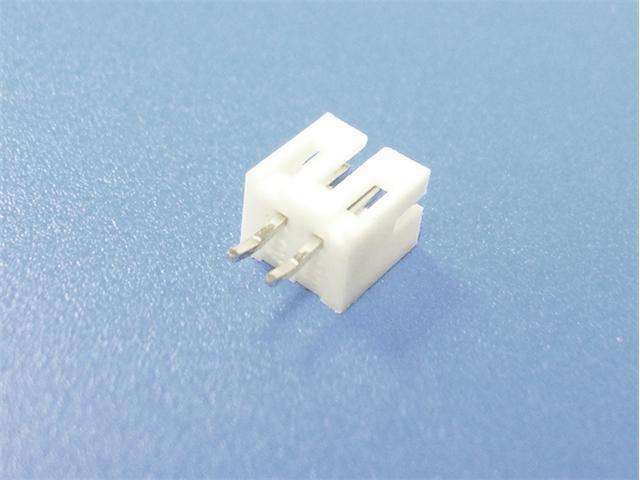

SIL Header Low Profile 2A Polarized Straight Type • 2.00mm • 2 way • Mates with : XY-132-02HT
Overview
Features
- JST Style 2mm Wire to Board Series
- Low Profile, Polarized, 6mm Height, Straight Type
- Mates with XY-132-02HT
- Insulator Material : Nylon 66 (UL 94V-0)
- Contact Material : Brass
- Contact Plated : Tin Plated
Specification
| No. of Contacts | 2 |
| No. of Pins | 2 |
| Pin Plating | Tin Plated |
| Size | 2.00mm |
| Mating Style | Mates with : XY-132-02HT |
