Product Details

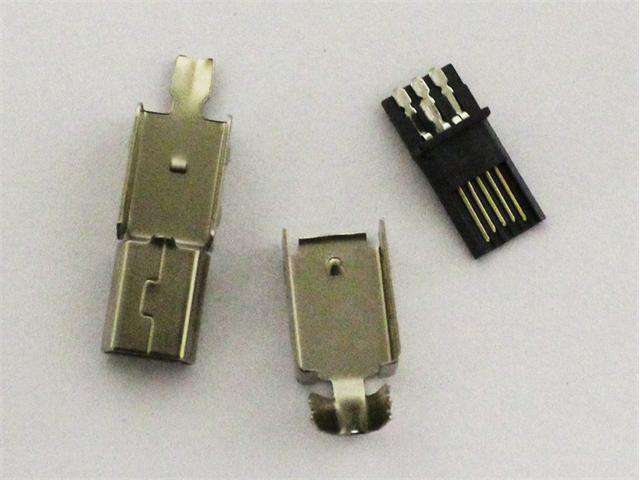

USB Plug Mini "A" Type 5Pin Solder and only 4 Connections on Input without Plastic Cover
Overview
Features
Specification
Â
| Contact Resistance | 10 mΩ max |
| Insulator Resistance | 500 MΩ min. @DC 500V |
| Current Rating | 1 A max |
| Voltage Rating | 25V DC |
| Dielectric Strength | AC 500V for 1 minute |
| Contact Material | Brass |
| Housing | PBT & 30% Glass Fiber (UL94V-0) |
