Product Details

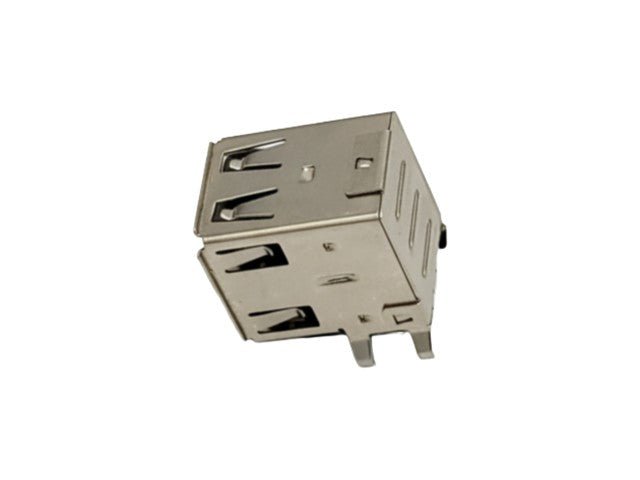

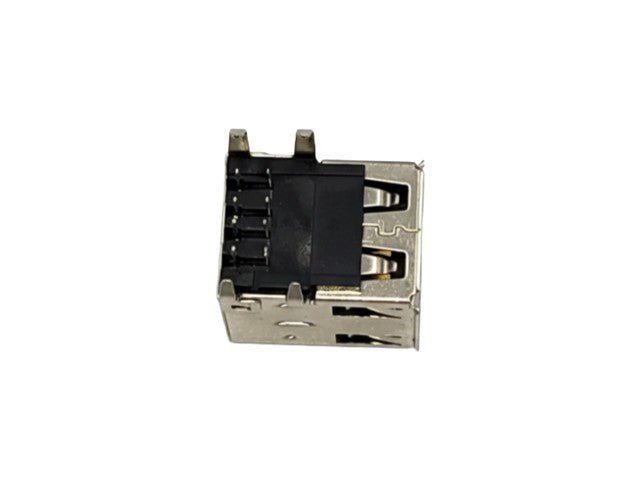

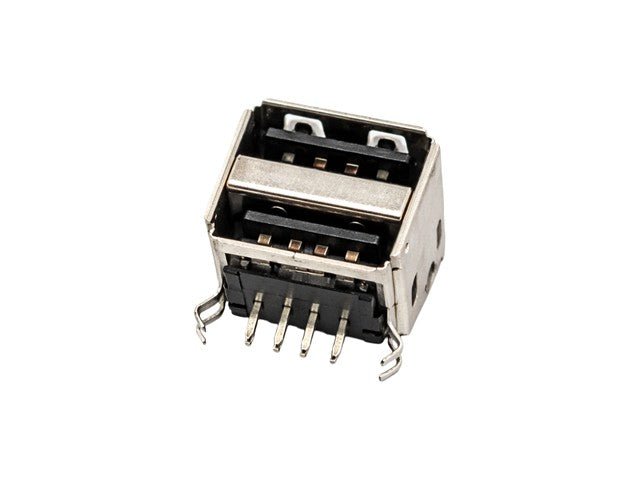

USB Connector Stack "A" Type R/A PCB
USB Connector Stack
Additional Information
| Device | Connector |
| Type | USB A |
| Highlights | Right Angle | PCB | Stackable |
| Contact Resistance | 30 mΩ max |
| Insulator Resistance | 1000 MΩ min. @DC 500V |
| Current Rating | 1 A |
| Voltage Rating | 30V AC |
| Dielectric Strength | AC 500V for 1 minute |
| Contact Material | Phosphor Bronze |
| Housing | PBT & 30% Glass Fiber (UL94V-0) |
