Product Details

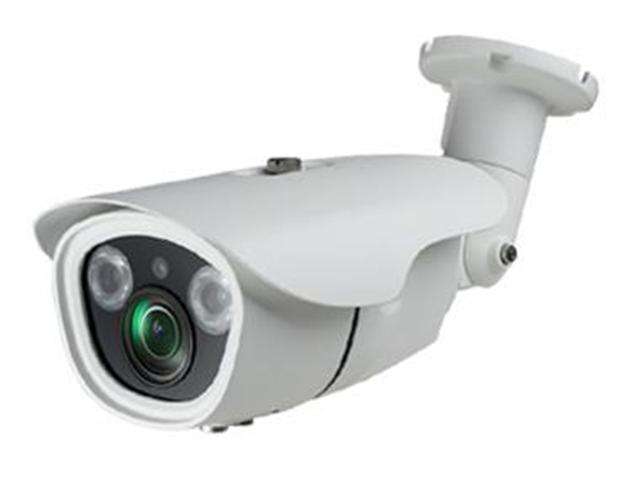

5.0MP Hybrid AHD Color Bullet Camera, 2.8~12mm Varifocal, 5 Megapixel Lens,2Pcs High Power IR Array LEDS 35m. Electronic Shutter, Auto White Balance.
Overview
Features
- Sensor : 5MP CMOS Image Sensor
- System : PAL
- Picture Elements : PAL:2560(H)x1944(V)
- Horizontal Recolution : 5.0 Megapixel
- Video OutPut : Hybrid Video Output
- S/N Ratio : ≥48dB
- Min.Illumination : 0LUX(IR ON)
- Electronic Shutter : 1/50(1/60)S~1/100,000S
- White Balance : Auto
- Gamma Ratio : >0.45
- Lens Mount : 2.8~12mm 5MP lens
- Operating Temp. : -10°C ~ +50°C
- Humidity : 0 to 95%RH(non-condensing)
- Power/Current : DC 12V
- Sync System : 2:1 Interlace internal Sync
- IR Project Distance : 30~35M / 2 units powerful Array LED
- IR Status : On
- Outdoor/Indoor : Outdoor
- NOTE: Camera default setting is AHD
- NOTE : To Change Setting On Camera
- Up CVI, Left CVBS, Right AHD, Down TVI
- Camera Is Set To AHD, At Factory
Method To Change To TVI
- Hold Button Down For Approx 5 Sec, (No Need To Press Button Down) Camera Will Switch To TVI, Pull Out Power From Camera. Camera Will Remain Set To TVI
Method To Change To Analogue (CVBS)
- Hold Button In Left Position For Approx 5 Sec, Camera Will Switch To Analogue, Pull Out Power From Camera. Camera Will Remain Set To Analogue
Method To Change To CVI
- Hold Button In Up Position For Approx 5 Sec, Camera Will Switch To CVI, Pull Out Power From Camera. Camera Will Remain Set To CVI
- When Changing To Either Of The Settings There Is No Need To Press Button Down
