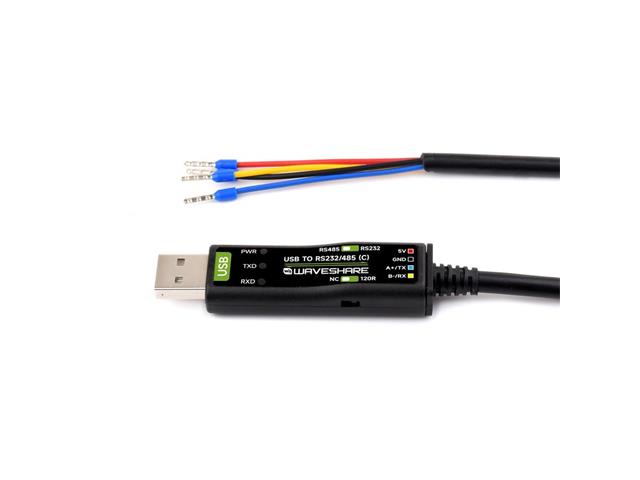

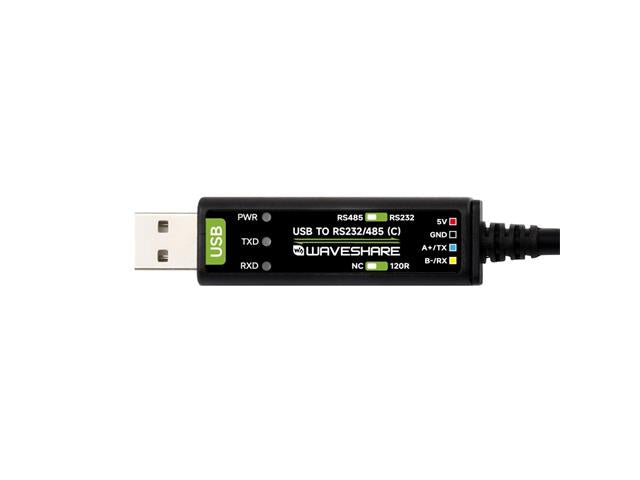

USB TO RS232/485 Serial Cable, Original FT232RNL Chip, Onboard Power and Signal Indicators, Multi-OS Compatible & Multi-Device Applicable. Supports Mac, Linux, Android, Win11/10/8.1/8/7, etc
USB TO RS232/485 Serial Cable
Specifications
| PRODUCT TYPE |
USB to RS232/485 serial cable |
| Chip |
Original FT232RNL chip |
| Host port |
USB |
| Device port |
RS232 / RS485 (switchable) |
| USB |
Connector |
USB-A |
| Protection |
Self-recovery fuse, ESD protection |
| RS232 |
Connector |
4PIN cable with female crimp connector |
| Protection |
TVS tube, surge-suppress and ESD protection |
| Transmission mode |
Point-to-point |
| Baud rate |
300bps ~ 921600bps |
| RS485 |
Connector |
4PIN cable with female crimp connector |
| Protection |
200W lightningproof, surge-suppress and ESD protection |
| Transmission mode |
Point-to-multipoints |
| Baud rate |
300bps ~ 921600bps |
| LED indicators |
PWR |
Power indicator, lights up when there is USB connection and voltage is detected |
| TXD |
TX indicator, lights up when the USB port sends data |
| RXD |
RX indicator, lights up when the device port sends data back |
| Cable |
Black, PVC sheath, 2m cable length |
