Product Details
R7FA4 Plus B Development Board, Based on R7FA4M1AB3CFM with ESP32-S3FN8, Compatible with Arduino UNO R4 WiFi Form Factor

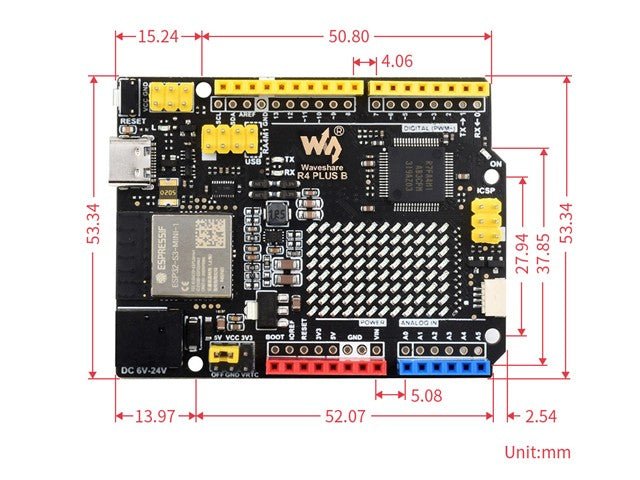

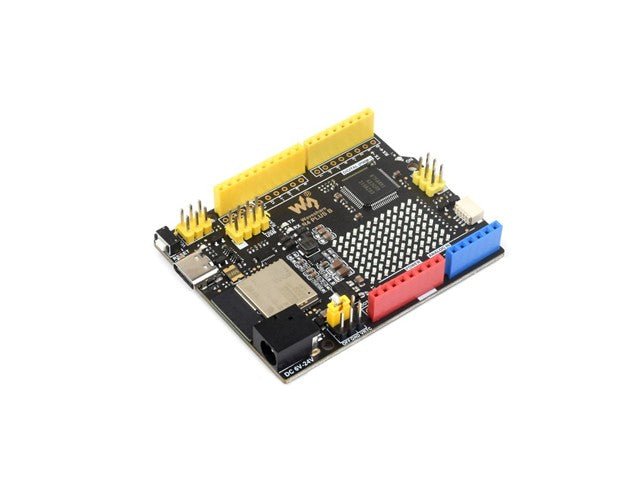

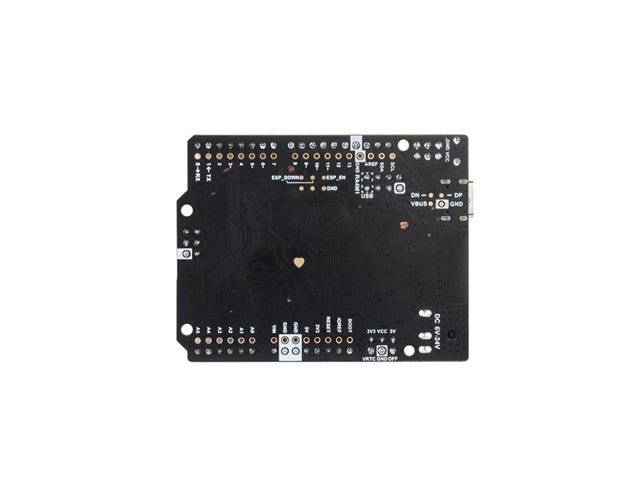

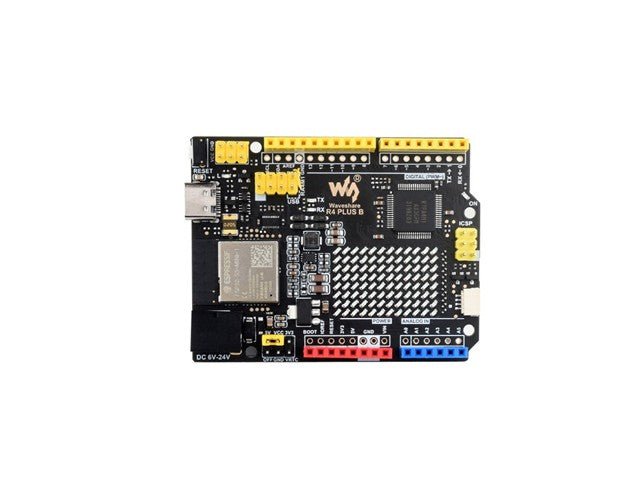

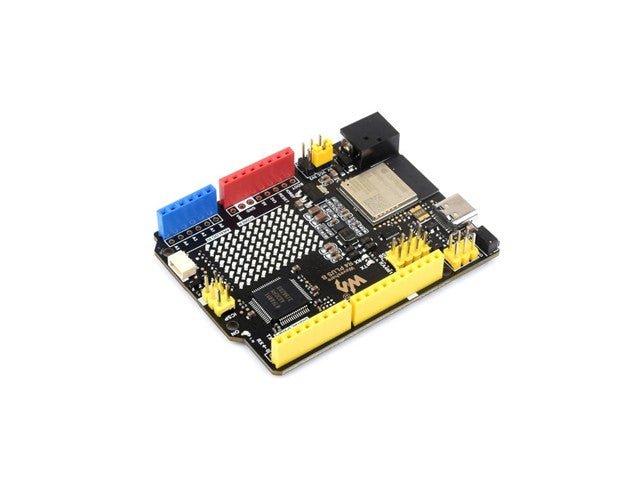

R7FA4 Plus B Development Board
Overview
R7FA4 PlUS B combines the processing power and the new peripherals of Renesas Electronics' RA4M1 microcontroller with wireless connectivity capabilities of Espressif's ESP32-S3. In addition, the board also offers onboard 12x8 LED matrix, Qwiic connectors, VRTC and OFF pins, catering to all potential needs for your next project.
With R7FA4 PlUS B, you can easily upgrade your project and add wireless connectivity to extend the coverage of your current setup. If this is your first project, the board has everything you need to spark your creativity.
Features
- Based on R7FA4M1AB3CFM, and is compatible with Arduino UNO R4 WiFi.
- Utilizes Renesas Electronics' RA4M1 (Arm® Cortex®-M4) microcontroller, with a main frequency of 48MHz.
- Onboard ESP32-S3 module, integrates 2.4GHz Wi-Fi and Bluetooth LE dual-mode wireless communication, allowing the maker to use it for wireless communication. Combined with Arduino IoT Cloud, you can remotely monitor and control the projects.
- Onboard 12x8 red LED matrix, suitable for creative projects with animation or plotting sensor data, no additional hardware is required.
- Equipped with 256 kB Flash and 32 kB RAM, the expanded memory can easily handle complex projects.
- The R7FA4 Plus development board adds a 12-bit DAC, CAN bus and operational amplifiers, providing expanded functionality and flexibility for designs.
- Onboard 5V/3.3V headers for easy voltage switching, allowing the use of more expansion modules.
- Flexible power options, supporting USB-C power supply or external input power VIN (6V<=VIN<=21V).
- Onboard power indicator (PWR), USER LED, serial port receive indicator (RX), and transmit indicator (TX), making it easy to monitor the working status of the development board.
- Onboard ICSP interface, can be used as an SPI interface.
- Supports user soldering of corresponding interface insertion into the experimental board.
Specifications
| MICROCONTROLLER | R7FA4 (32-bit ARM Cortex-M4) |
|---|---|
| ESP32-S3FN8 (Dual-core 32-bit Xtensa LX7) |
|
| CLOCK FREQUENCY | R7FA4: 48MHz |
| ESP32-S3FN8: 240MHz | |
| STORAGE | R7FA4: 256kB FLASH, 32kB RAM |
| ESP32-S3FN8: 384kB ROM, 512kB RAM, 8MB Flash | |
| WIRELESS COMMUNICATION | 2.4GHz WiFi + Bluetooth LE |
| OPERATING VOLTAGE | Options for 5V/3.3V, support more shields |
| POWER INPUT | 6~24V |
| RESET BUTTON | Lateral, easier to use when connecting with shield |
| IO PIN OUTPUT CURRENT |
8mA |
| DIGITAL PINS | 14 |
| ANALOG PINS | 6 |
| DAC | 2 |
| PWM | 6 |
| UART | 1 |
| I2C | 1 |
| SPI | 1 |
| CAN | 1 |
| DC JACK | Low profile, shields won't be blocked anymore while connecting |
| POWER OUTPUT HEADER | Provides 5V OR 3.3V power output and common-grounding with other boards |
| 5V POWER OUTPUT | Up to 2000mA Max, features higher driving capability |
| EXPERIMENTAL BOARD | Support, the solder pad is provided for DIY interfaces to connect with the experimental board |
Additional Information
| Device | Development Board |
| Type | R7FA4 | Plus B |
