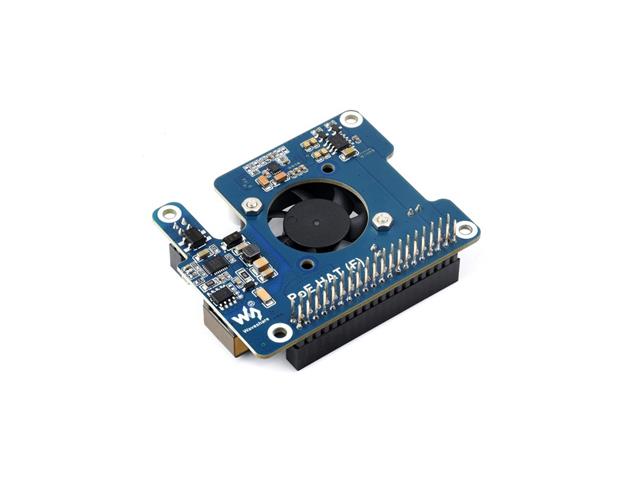

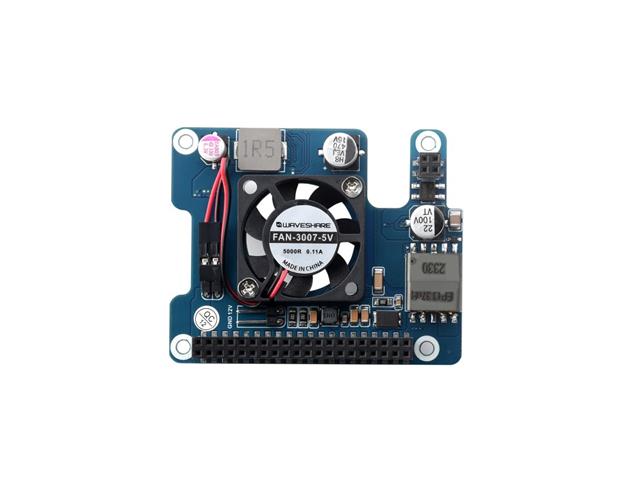

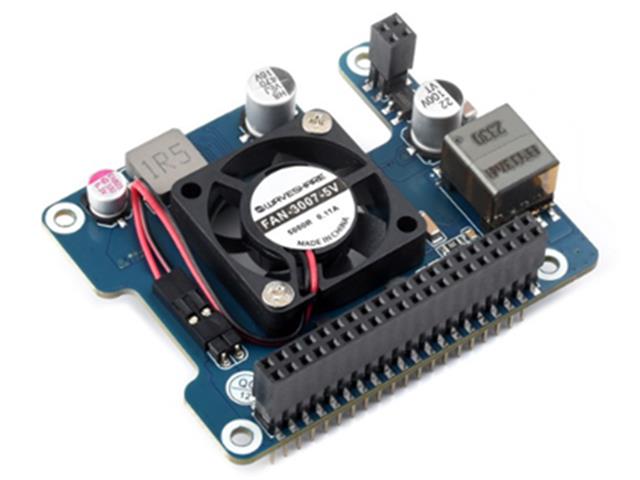

Power Over Ethernet Hat (F) For Raspberry Pi 5, High Power, Onboard Cooling Fan, With Metal Heatsink, Supports 802.3Af/at Network Standard
Power Over Ethernet Hat
Overview
The PoE HAT (F) is a 802.3af/at-compliant Power Over Ethernet accessory for the Raspberry Pi 5. By using this small HAT and some proper 802.3af/at-compliant power sourcing equipments, it is possible to provide both network connection and power supply for your Raspberry Pi in only one Ethernet cable.
Features
- Standard Raspberry Pi 40PIN GPIO header, supports Raspberry Pi 5
- PoE (Power Over Ethernet) capability，IEEE 802.3af/at-compliant
- Fully isolated switched-mode power supply (SMPS)
- Onboard high speed active cooling fan, with metal heatsink, better heat dissipation
Specifications
| POE POWER INPUT | 37V ~ 57V DC in |
|---|---|
| POWER OUTPUT | GPIO header: 5V 4.5A (MAX) 2P header: 12V 2A (MAX) |
| DIMENSIONS | 56.5 × 70.0mm |
| NETWORK STANDARD | IEEE 802.3af/at PoE |
Additional Information
| Device | Hat |
| Type | Power Over Ethernet |
