Product Details

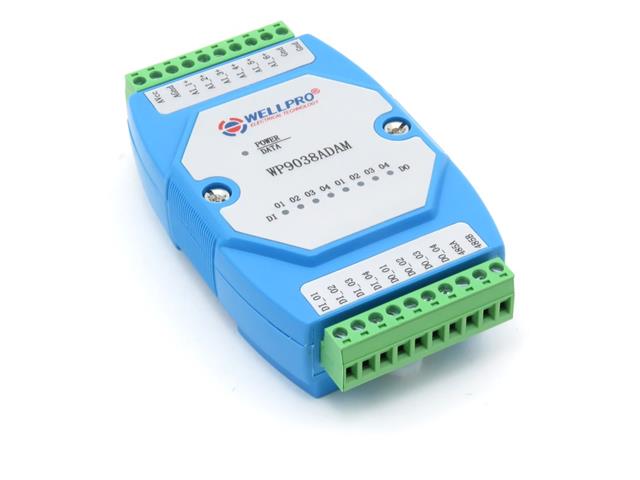

RS485 MODBUS RTU standard communication protocol -Six current input channel: DC0~20mA / DC4~20mA / Four optoelectronic isolation digital I/O - Input (Low level) / Output (NPN Collector)
Standard Modbus RTU Communication Protocol
Features
- Six current input channel: DC0~20mA / DC4~20mA
- Four optoelectronic isolation digital input channel (Low level input)
- Four optoelectronic isolation digital output channel (NPN collector output)
- RS485 MODBUS RTU standard communication protocol
- Netted with configuration software, PLC or industry touch panel
- Communication, digital input and digital output status LED
- Communication circuit designed for thunder protection and interference immunity
- Used for signal collection and control in industrial field
Specifications
- Analog input channel 6ch
- Analog input range DC0~20mA / DC4~20mA
- Analog input accuracy ±0.02mA
- Digital input channel 4ch (Low level input)
- Digital output channel 4ch (NPN collector output, 500mA)
- Working temperature -20~70℃
- External power supply DC9V~30V/2W
- Isolation protection DC1500V
- Installation method Standard DIN slide rail or screw
- Dimension 125×73×35mm
Downloads
Additional Information
| Device | Modbus |
| Type | RS485 |
