Product Details

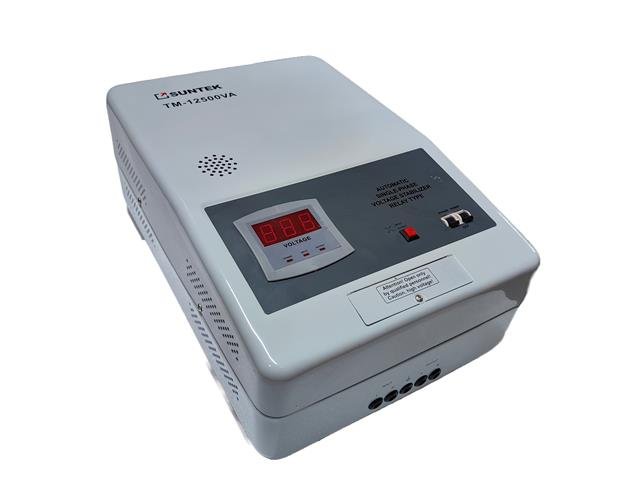

Single Phase Voltage Stabilizers - Relay type. Input: 120 ~ 285VAC; Output: 220VAC (+/-8%) 12,500VA - Metal Case w/Digital Display
Single Phase Voltage Stabilizers
Overview
Case size 17x30x48 cm. Weight 23Kg. Operating Temp -30 to +50 Degree C
Feature
- The Powerful Stabilizer For The Cottage, Production And Country House!
- One Of The Most Powerful In The Line Of Suntek Relay Stabilizers
- 63 Amper Automat With Bypass, Lightning Protection, Full-Power Pulling Coil From 140 Volts At The Input, A Microprocessor Control Circuit, A Powerful Terminal Block, A Forced Cooling Fan
- A Stabilizer Filling That Allows You To Drop Everything Anxiety Due To Poor Tension In The House.
- Holds Full Power From 140 Volts
- Digital Display
- Bypass (Input Voltage Transits To The Output, Without Stabilization)
- Instant Response Time To Change In Input Voltage
- Analysis Of The Input Voltage At Any Time
Specifications
| Brand | Suntek | Model No. | TM-12500VA |
|---|---|---|---|
| Item Name | Voltage Stabilizer | Rated Power | 12500 VA |
| Input Voltage Range | 120-285 V | Output Voltage Range | 220 V |
| Maximum Current | 63 A | Stabilization Type | Relay |
| Adjustment | Stepwise | Network Connection Method | Terminal Block |
| Overall Dimensions | 50x27x17 cm | Output Voltage Accuracy | 0.08 |
| Distortion Sine Wave | No | Cooling | Forced |
| Housing | Metal | Weight | 21 KG |
Additional Information
| Type | Metal Case | Digital Display |
