Product Details

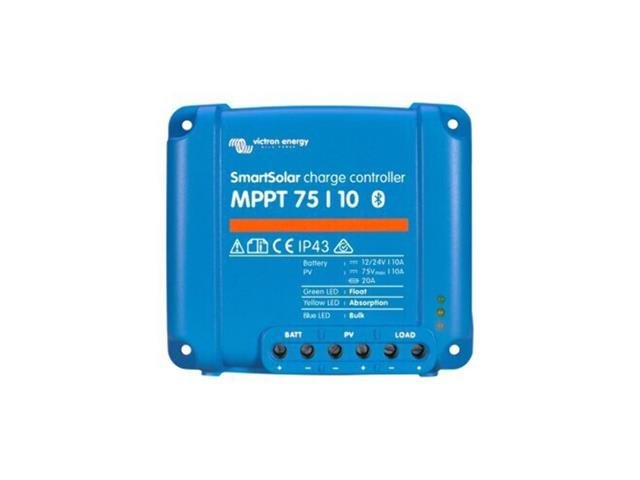

Smart Solar Charge Controller
Overview
Bluetooth Smart built-in: dongle not needed
The wireless solution to set-up, monitor and update the controller using Apple and Android smartphones, tablets or other devices.
VE.Direct
For a wired data connection to a Color Control GX, PC or other devices
Ultra-fast Maximum Power Point Tracking (MPPT)
Especially in case of a clouded sky, when light intensity is changing continuously, an ultra-fast MPPT controller will improve
energy harvest by up to 30% compared to PWM charge controllers and by up to 10% compared to slower MPPT controllers.
Load output
Over-discharge of the battery can be prevented by connecting all loads to the load output. The load output will disconnect
the load when the battery has been discharged to a pre-set voltage.
Alternatively, an intelligent battery management algorithm can be chosen: see Battery Life.
The load output is short circuit proof.
Battery Life: intelligent battery management
When a solar charge controller is not able to recharge the battery to its full capacity within one day, the result is often that the battery will continually be cycled between a ‘partially charged’ state and the ‘end of discharge’ state. This mode of operation (no regular full recharge) will destroy a lead-acid battery within weeks or months. The Battery Life algorithm will monitor the state of charge of the battery and, if needed, day by day slightly increase the load disconnect level (i.e. disconnect the load earlier) until the harvested solar energy is sufficient to recharge the battery to nearly the full 100%. From that point onwards, the load disconnect level will be modulated so that a nearly 100% recharge is achieved about once every week.
Programmable battery charge algorithm
See the software section on our website for details
Day/night timing and light dimming option
See the software section on our website for details
Specifications
- SmartSolar Charge Controller : MPPT 75/10
- Battery voltage: 12/24V Auto Select
- Rated charge current : 10A
- Nominal PV power, 12V 1a,b) : 145W
- Nominal PV power, 24V 1a,b) : 290W
- Max. PV short circuit current 2) : 13A
- Automatic load disconnect : Yes maximum load 15A
- Max. PV open circuit voltage : 75V
- Peak efficiency : 98%
- Self-consumption :10 mA
- Self-consumption – load off : 10 / 8 / 7 mA
- Charge voltage 'absorption : 14,4V / 28,8V (adj.)
- Charge voltage 'float' : 13,8V / 27,6V (adj.)
- Charge algorithm : multi-stage adaptive
- Temperature compensation : -16 mV / °C resp. -32 mV / °C
- Continuous load current : 15A
- Low voltage load disconnect : 11,1V / 22,2V or 11,8V / 23,6V or Battery Life algorithm
- Low voltage load reconnect : 13,1V / 26,2V or 14V / 28V or Battery Life algorithm
- Protection : Battery reverse polarity (fuse) / Output short circuit / over temperature .
- Operating temperature : -30 to +60°C (full rated output up to 40°C)
- Humidity : 95%, non-condensing
- Data communication port : VE.Direct (see the data communication white paper on our website)
ENCLOSURE
- Colour : Blue (RAL 5012)
- Power terminals : 6 mm2 / AWG10
- Protection category : IP43 (electronic components), IP22 (connection area)
- Weight : 0,5 kg
- Dimensions (h x w x d) : 100 x 113 x 40 mm
