Product Details

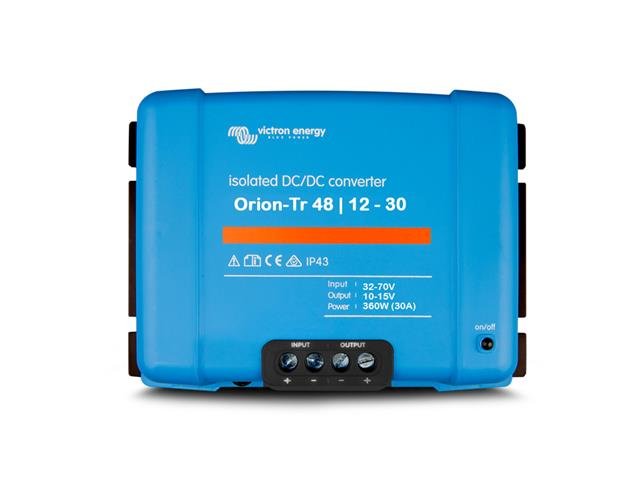

Victron Isolated DC-DC Converter 48V/12V 30A 360W, I/P Votage Range: 40→70VDC, O/P Voltage Adjust Range:10→15VDC, 16mm² AWG6, IP43, {130x186x70mm}, 1.6Kg
Isolated DC-DC Converter 48V/12V 30A
Feature
- Remote on/off
- The remote on/off eliminates the need for a high current switch in the input wiring. The remote on/off can be operated with a low power switch or by for example the engine run/stop switch (see manual).
- All models are short circuit proof and can be paralleled to increase output current. An unlimited number of units can be connected in parallel.
- IP43 protection
- When installed with the screw terminals oriented downwards.
- Screw terminals
- No special tools needed for installation.
- Input fuse
- On 12V and 24V input models only.
Downloads
Additional Information
| Device | Converter |
| Type | Isolated | DC-DC | 48V/12V 30A |
