Product Details

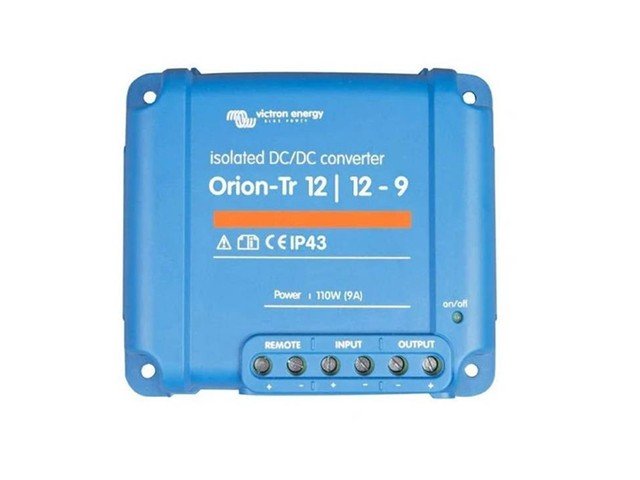

Victron Isolated DC-DC Converter 12V 9A 110W, I/P Votage Range: 8→17VDC, O/P Voltage Adjust Range:10→15VDC, 6mm² AWG10, IP43, {100x113x47mm}, 0.42Kg
Isolated DC-DC Converter 12V
Specifications
- Input voltage range: 8–17 V
- Under-voltage shutdown: 7 V
- Under-voltage restart: 7.5 V
- Nominal output voltage: 12.2 V
- Output voltage adjust range: 10–15 V
- Output voltage tolerance: ±0.2 V
- Output noise: 2 mV RMS
- Continuous output current @25 °C: 9 A
- Maximum output current (10 s): 12.5 A
- Short-circuit output current: 32 A
- Continuous output power @25 °C: 110 W
- Continuous output power @40 °C: 85 W
- Efficiency: 87 %
- No-load input current: < 50 mA
Downloads
Additional Information
| Device | Converter |
| Type | DC-DC | 12V |
