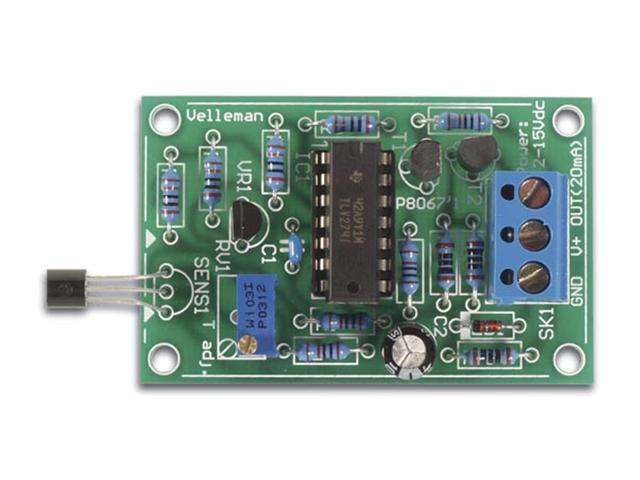

Universal Temperature Sensor Kit
Overview
 Applications : measure indoor and outdoor temperatures, control heating and/or cooling of rooms, equipment, etc... Monitor temperatures in processes, put a temperature readout on your website, check your pools temperature
Features
Specification
- range: -20° ~ +70°C
- output: 0 ~ 20mA current loop
- output voltage compliance: 10V
- accuracy: 2° full range
- one single adjustment
- 3-Wire system: GND, +V and OUT
- power supply: 12VDC for 0 ~ 5V OUT / 15VDC for 0 ~ 10V OUT
- current consumption: 30mA max.
- dimensions: 55 x 35 x 15mm / 2.2 x 1.4 x 0.6"
