V23154-N0720-F104
V23154-N0720-F104
V23154-N0720-F104
V23154-N0720-F104

V23154-N0720-F104

Regular price
Dhs. 33.00
Regular price
Sale price
Dhs. 33.00
Unit price
per
Availability
Sold out

Siemens Hi Duty Size 2 Industrial Cradle Relay with Gold Flash Contacts and Ground Terminal Form 4C 20VDC (9-32VDC) 550 ohm  Coil Res. 5A/250VAC/VDC Peak Switching PCB Mount 6-1393810-9

  • Multi purpose relay
  • Highly reliable
  • Great variety of contact arrangements and materials to meet specific applications
  • Contacts for signal loads and currents up to 5 A
  • DC coil, operating voltage 1.5VDC to 125VDC; AC, latching and non-latching coils on request
  • Sockets for easy and quick mounting of relays

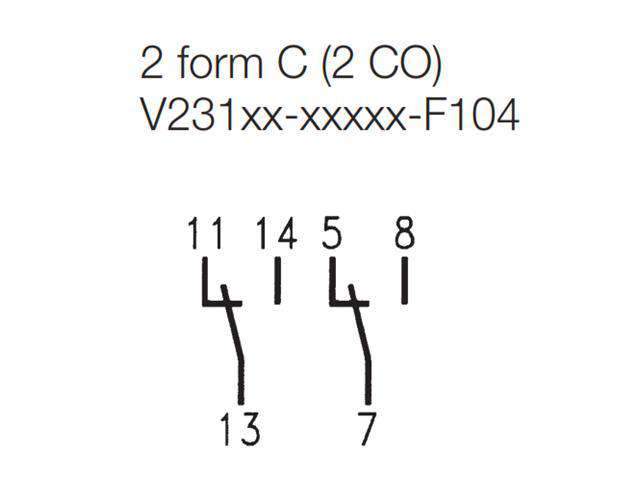

Contact Form Form 2C
Termination Plug In
Coil Rated Voltage 20V
AC/DC Voltage DC
Max. Switching Current 5A
Coil Power 727mW Power
Coil Resistance 550Ω
Contact Material Silver, Gold-flashed
