Product Details

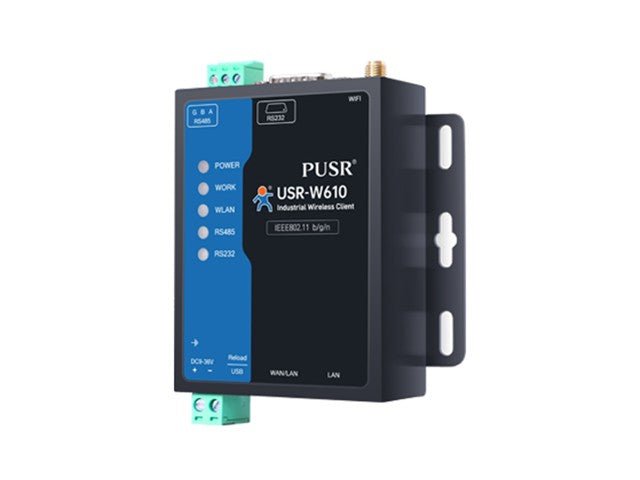

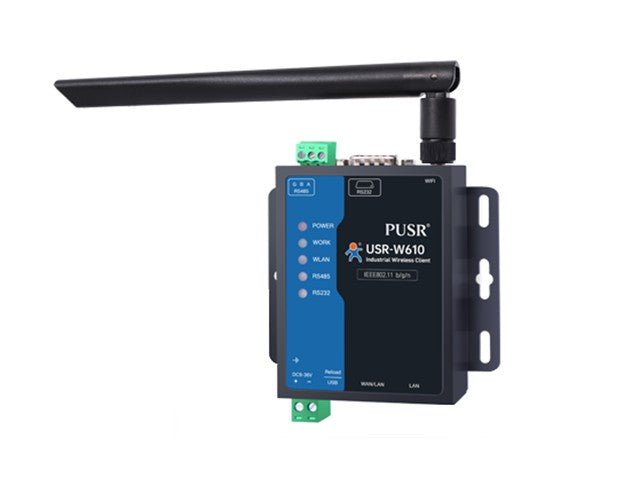

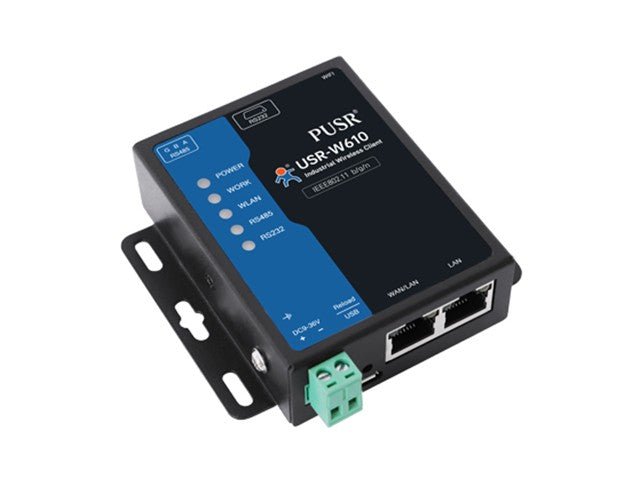

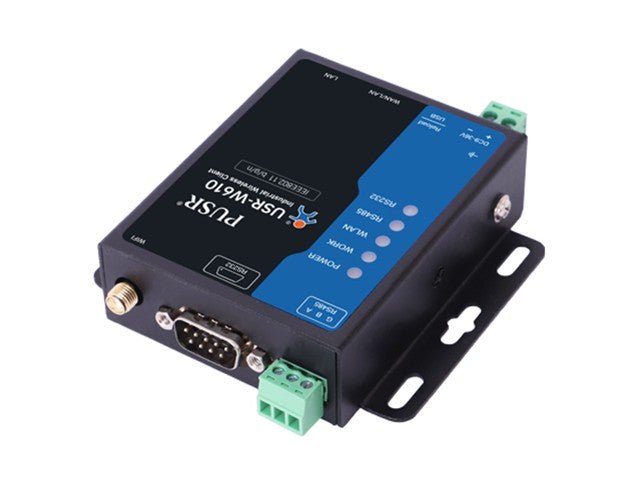

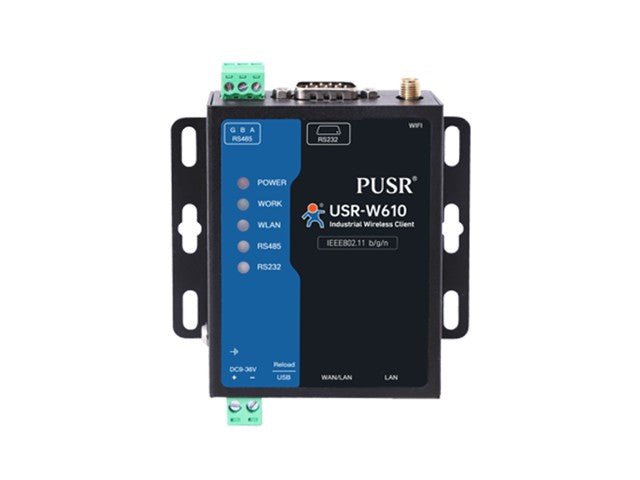

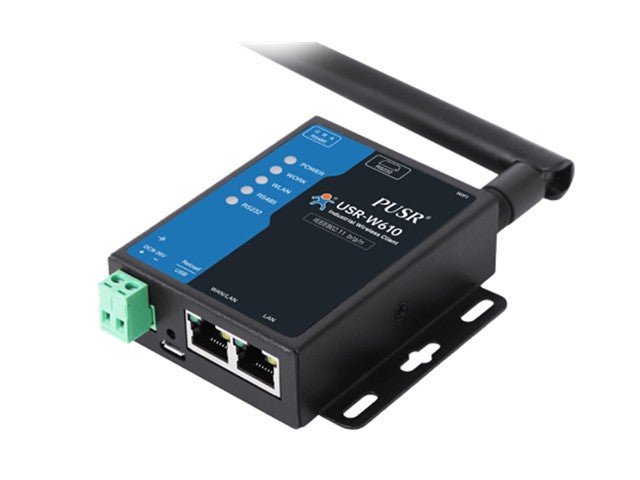

Industrial USR-W610 Qualcomm Version Serial RS232 RS485 /Ethernet to WI-FI Converter 2·4G Wi-Fi Serial Server Support MQTT/TCP/UDP/HTTP Data Communication
RS232 RS485 /Ethernet to WI-FI Converter
Specifications
| Port Number | 1 Ethernet Ports: 1 x WAN/LAN |
| Buffer | Rx/TX: Max 16K bytes |
| Protection | 2 KV Electromagnetic isolation for Ethernet port |
| Network Protocol | IP/TCP/UDP/DHCP/DNS/https/ ARP/ICMP/Web socket/httpsd client |
| Speed Rate | 10/100 Mbps, MDI/MDIX |
| Wi-Fi | |
| Certificate | FCC/CE |
| WiFi | 802.11 b/g/n |
| Frequency Range | 2.400 GHz – 2.4835 GHz |
| Transmit Power | 802.11b: +19dBm(Max) 802.11g: +18dBm(Max) 802.11n:+17dBm(Max) |
| Receive Sensitivity | 802.11b: -89dBm 802.11g: -81dBm 802.11n: -73dBm |
| Hardware | |
| Interface Standard | RS232：300～460.8Kbps RS485：300～230.4Kbps |
| Input Voltage | DC5～36V |
| Operating Temp. | -40℃～ 85℃ |
| Storage Temp. | -40℃～ 125℃ |
| Size | 86*82.5*25mm(L*W*H) |
| Software | |
| Network Mode | Station/AP/AP+Station |
| Security | WEP/WPA-PSK/WPA2-PSK |
| Encryption | WEP64/WEP128/TKIP/AES |
| Work Mode | Transparent transmission / serial AT command/ https Client、Modbus TCP<=>Modbus RTU |
| Setting Command | AT+command |
| Networking Protocol | TCP/UDP/ARP/ICMP/DHCP/DNS/https |
| Max. Client Number in TCP Server Mode | 24 |
| Configuration | Web sever+ AT command |
| More | |
| Warranty | 2 years |
Additional Information
| Device | Serial Server |
| Type | RS232 RS485 /Ethernet to WI-FI Converter |
