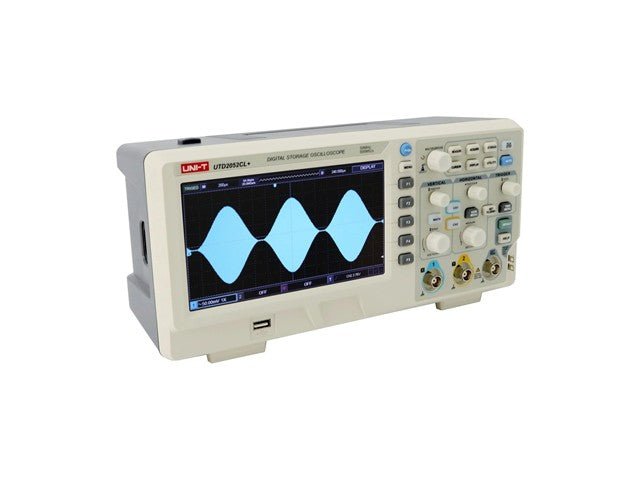

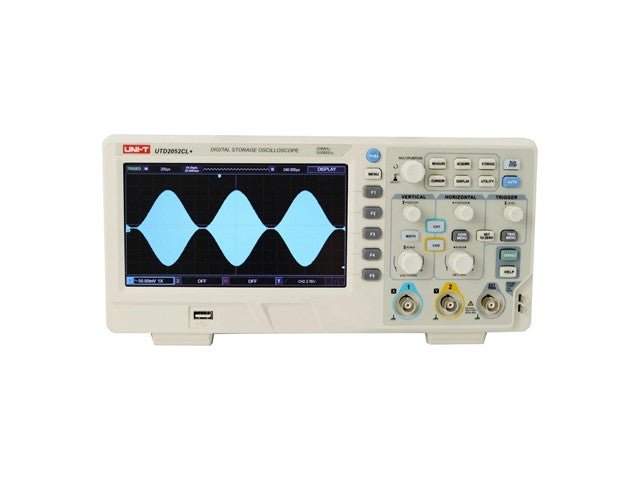

Digital Storage Oscilloscope 2CH 50MHz 7Inch TFT Colour Display 500M s/s 7ns USB Host, Memory Depth 64kpts (306×138× 124mm) 3Kg
2CH Digital Storage Oscilloscope
Features
- Bandwidth: 150MHz/250MHz
- Measurement channel: 2/4 analog channel, 16 digital channel
- Real-time sampling rate: 2.5GS/s
- Storage depth: 70Mpts per channel
- Waveform capture rate: 200,000wfms/ s
- Gray level: 256
- Auto measurement: 34 waveform types
- Waveform record: record original data 100,000 frame at the same time
- Abundant trigger: edge, pulse width,runt, exceed-amplitude, N-edge, delay, timeout, duration, setup hold, slope, video, code pattern
- Bus encoding: RS232, IIC, SPI, USB, CAN
- Independent time base: each channel can adjust independently
- Display: 8inchWVGA (800*480) TFT LCD, super-widescreen, vivid color, clean display
- Peripheral interface: USB Host, USB Device, LAN, EXT Trig, AUX 0UT(Trig out, Pass/Fail) output, signal source output interface AWG, VGA and multimeter module UT-M12 ( optional)
- Waveform generator: builtin double channel, maximum 50MHz arbitrary waveform generator
Specifications
| Model Number |
UTD2052CL+ |
| Scope Type |
DSO |
| Bandwidth |
50MHz |
| Channels |
2Ch |
| Scope Sample Rate |
500MSa/s |
| Memory Depth |
64kpts |
| Refresh Rate |
5,000wfms/s |
| Vertical Scale @1MΩ |
1V/div to 20V/div |
| # Automatic Measurements |
28 |
| Included Bus Protocols |
None |
| Optional Bus Protocols |
None |
| Logic Pod Included |
Not Available |
| Signal Generator Function |
Not Available |
| Frequency Meter |
6-bit |
| Display Size (in) |
7in |
| Touchscreen |
No |
| Warranty |
3 years |
| Product Dimensions (L x W x H) |
12 in x 4 in x 5 in |
| Product Weight |
6 lb |
| Certifications |
CE/cETLus/UKCA |
| Documents |
English download guide, multi-language safety manual, calibration report (COC) |

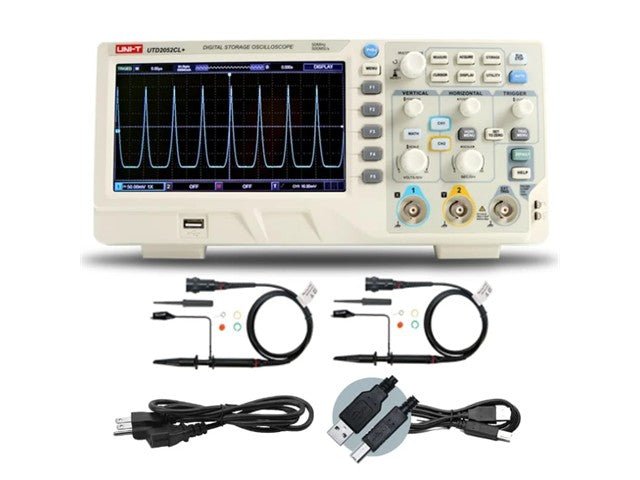

| Included Accessories |
Oscilloscope probe (UT-P03)*2 |
| Standard Accessories |
Power cord, USB2.0 printing cable |
Downloads
Additional Information
| Device |
Oscilloscope |
| Type |
2CH | Digital | Storage |
