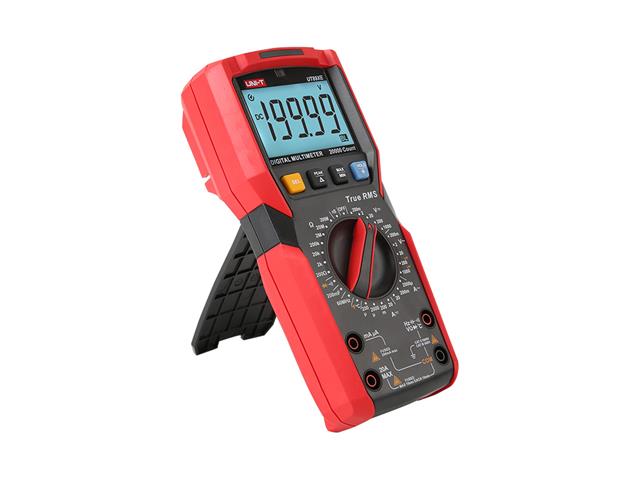

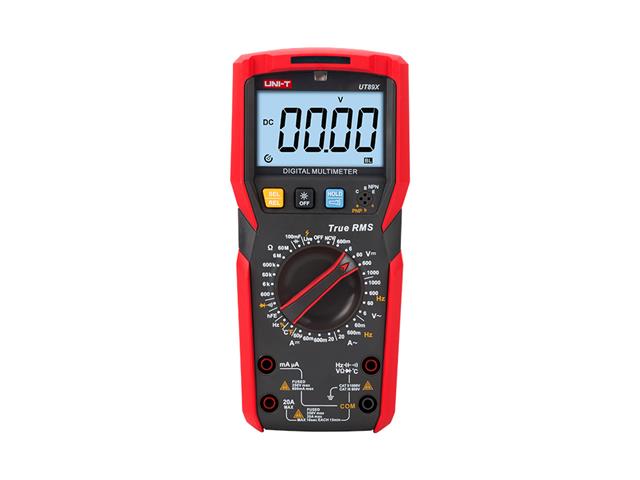

Digital Multimeter 1000V ACDC, 20A ACDC, TRUE RMS, Display Count:6000, RES:60MΩ, CAP:100mF, FREQ:10MHz, TEMP:-40℃~1000℃, Live Wire Test, Dual Range NCV Test, Flashlight, Transistor hFE, Diode/continuity Test, Audio Visual Alarm, Data Hold
1000V ACDC Digital Multimeter
Features
- 1000V AC/DC； 20A AC/DC
- True RMS, 6000 count
- Dual range NCV test which quickly identifies neutral and live wires through light intensity
- Audible/visual alarm
- Capacitor charging indicator
- Ergonomic design
- Double injection molding
- 1m drop proof
- Flashlight; Auto backlight
Specifications
| Specifications |
Range |
UT89X |
| DC voltage (V) |
600mV/6V/60V/600V/1000V |
±(0.5%+2) |
| 200mV/2V/20V/200V/1000V |
|
| AC voltage (V) |
6V/60V/600V/1000V |
±(0.8%+5) |
| 200mV/2V/20V/200V/1000V |
|
| DC current (A) |
60μA/60mA/600mA/20A |
±(0.8%+8) |
| 60μA/6mA/60mA/600mA/20A |
|
| 2000μA/200mA/20A |
|
| AC current (A) |
60mA/600mA/20A |
±(1%+12) |
| 2000uA/200mA/20A |
|
| Resistance (Ω) |
600Ω/6kΩ/60kΩ/600kΩ/6MΩ/60MΩ |
±(0.8%+3) |
| 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ/200MΩ |
|
| Capacitance (F) |
100mF |
±(2.5%+20) |
| 200mF |
|
| Conductance (ns) |
200nS |
|
| Frequency (Hz) |
9.999Hz/9.999MHz |
±(0.1%+4) |
| 60MHz |
|
| Duty cycle |
0.1%~99.9% |
±(2%+5) |
| Temperature (℃) |
-40℃~1000℃ |
±(2%+4) |
| Temperature (℉) |
-40℉~1832℉ |
±(2%+8) |
| Live wire test |
|
Yes |
| LED test |
|
|
| Audible/visual alarm |
V/A/Cap/Diode |
Live/hFE/NCV |
| Transistor Hfe |
|
Yes |
| Dual range NCV test |
|
Yes |
| Flashlight |
|
Yes |
| MAX/MIN |
|
|
| Peak Hold |
|
|
| LPF measurement |
|
|
| General Characteristics |
| Power |
1.5V battery (R03) x 4 |
| Display |
61mm x 36mm |
| Product net weight |
345g |
| Product size |
189mm x 89mm x 53mm |
| Standard accessories |
Batteries, test lead, k-type temperature probe (UT89X/UT89XE), English manual |
| Standard individual packing |
Gift box |
| Standard quantity per carton |
20pcs |
| Standard carton measurement |
450mm x 355mm x 340mm |
| Standard carton gross weight |
12.2kg |
Downloads
Additional Information
| Device |
Multimeter |
| Type |
1000V | ACDC | Digital |
