Product Details
Clamp Meter Digital 750V AC/1000 DC 600A AC Resistance 60M, CAP:60nF~60mF, FREQ, Temp, Display Count 6000, Auto Range, Jaw Capacity 30mm, True RMS, Diode, NCV, V.F.C, Auto Power OFF, Continuity Buzzer, Low Bat Indication, CATII 1000V CATIII 600V

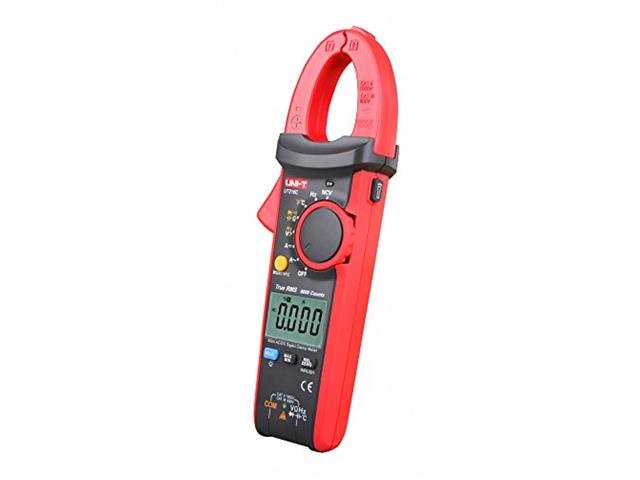

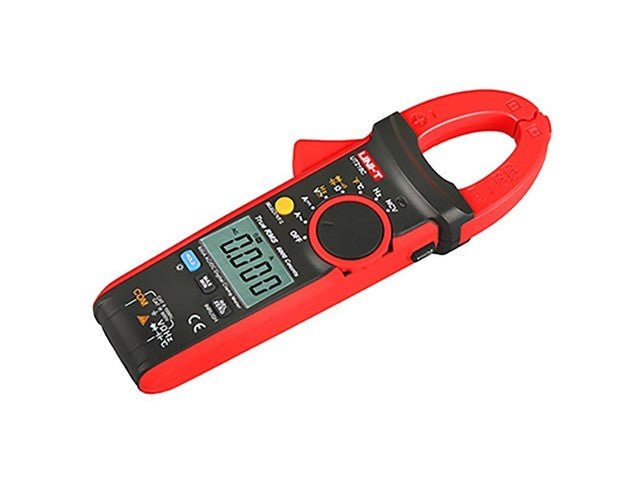

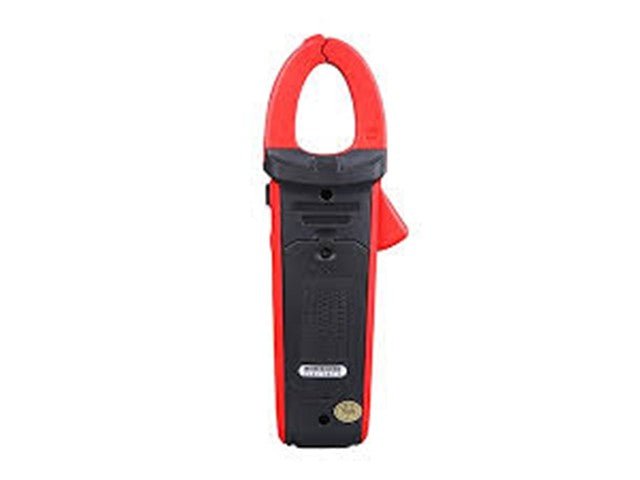

750V Digital Clamp Meter
Specifications
- AC current (A) : 600A ±(2.5%+5)
- AC current frequency response : 40~400Hz
- AC voltage frequency response : 600A ±(2.5%+5)
- DC current (A) : 750V ±(1.2%+5)
- AC voltage (V) : 40~400Hz
- DC voltage (V) : 1000V ±(0.8%+1)
- Resistance (Ω) : 60MΩ ±(1%+2)
- Capacitance (F) : 60mF ±(4%+5)
- Frequency (Hz) : 10Hz~1MHz ±(0.1%+4)
- Temperature
- -40°C~1000°C ±(2%+5)
- -40°F~1832°F : ±(2%+10)
- Display count : 6000
- Auto range : Yes
- Jaw opening : 30mm
- True RMS : Yes
- Diode : Around 3.0V : Yes
- V.F.C. : Yes
- NCV : Yes
- Data hold : Yes
- Relative mode : Yes
- MAX/MIN : Yes
- LCD backlight : Yes
- Inrush current : Yes
- Analog bar graph : Yes
- Flashlight : Yes
- Auto power off : Yes
- Continuity buzzer : Yes
- Low battery indication : ≤3.6V : Yes
- Input protection : Yes
- Input impedance for DCV : ≥10MΩ : Yes
- Power : 1.5V battery (R03) x 3
- Display : 38mm x 24mm
- Product color : Red and grey
- Product net weight : UT216A: 280g; UT216B/C/D: 231.7g
- Product size : 220mm x 75mm x 40mm
- Standard accessories : Batteries, test leads, point contact temperature probe
Additional Information
| Device | Clamp Meter |
| Type | 750V | Digital |
