Clamp Meter Digital 600V AC/DC 400A AC Resistance 40M, FREQ:10Hz~10MHz, TEMP:-40℃~1000℃, CAP:4mf , Display Count 4000, Auto Range, Jaw Capacity 28mm, Diode, Data Hold, NCV, Auto Power Off, Continuity Test, Low Bat Indication, CATIII 300V

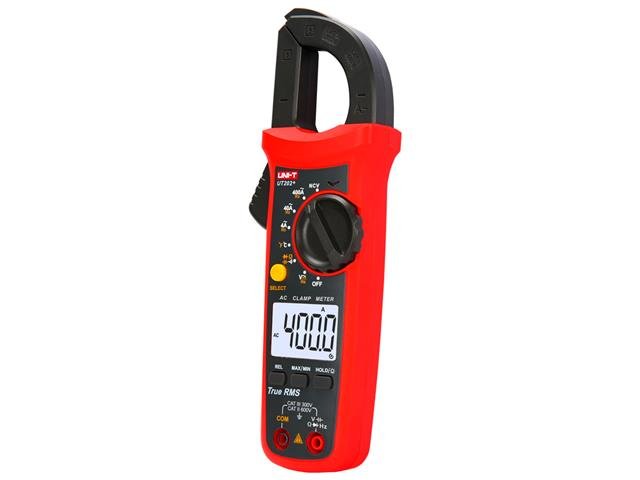

600V Digital Clamp Meter
Features
- Industrial electricity
- Residential electricity
- Air conditioning
- Automobile
Specifications
| |
Range |
UT202+ |
| AC current (A) |
400A |
±(2%+10) |
| 600A |
|
| AC current frequency (Hz) |
50Hz~100Hz |
±(1%+5) |
| DC current (A) |
400A |
|
| 600A |
|
| AC voltage (V) |
600V |
±(0.8%+5) |
| AC voltage frequency(Hz) |
10Hz~10kHz |
±(1%+5) |
| 10Hz~60kHz |
|
| DC voltage (A) |
600V |
±(0.5%+2) |
| Resistance (Ω) |
40MΩ |
±(0.8%+2) |
| 60MΩ |
|
| Capacitance (F) |
4mF |
±(4%+5) |
| 40mF |
|
| 60mF |
|
| Temperature (℃) |
-40℃~1000℃ |
±(1.5%+5) |
| Frequency (Hz) |
10Hz~10MHz |
|
| Features |
| Display count |
|
4000 |
| Auto range |
|
Yes |
| Jaw opening |
|
28mm |
| True RMS |
|
Yes |
| NCV |
|
Yes |
| Continuity test |
|
Yes |
| Diode |
|
Yes |
| MAX/MIN |
|
Yes |
| Relative mode |
|
Yes |
| Data hold |
|
Yes |
| Low battery indication |
|
Yes |
| Auto power off |
|
Yes |
| General Characteristics |
| Power |
1.5V battery (R03) x 2 |
| Display |
37mm x 25mm |
| Product color |
Red and grey |
| Product net weight |
UT201+/UT202+/UT202A+：248g; UT203+/UT204+:235g |
| Product size |
215mm x 63mm x 36mm |
| Standard accessories |
Batteries, test leads, Themocouple (UT202+/UT204+) |
| Standard individual packing |
Gift box, Carring bag, English manual |
Downloads
Additional Information
| Device |
Clamp Meter |
| Type |
600V | Digital |
