Pocket Size Digital Multimeter 600V AC/DC 400MA AC/DC , Resistance(W):40,MW , Capacitance(F):100μf , Frequency(HZ):10hz~60KHZ , Duty Cycle:20%~80% , NCV , Diode/continuity Test , Low Batt Indication , Data Hold/auto Pwr Off , Cat III 600V , 180G

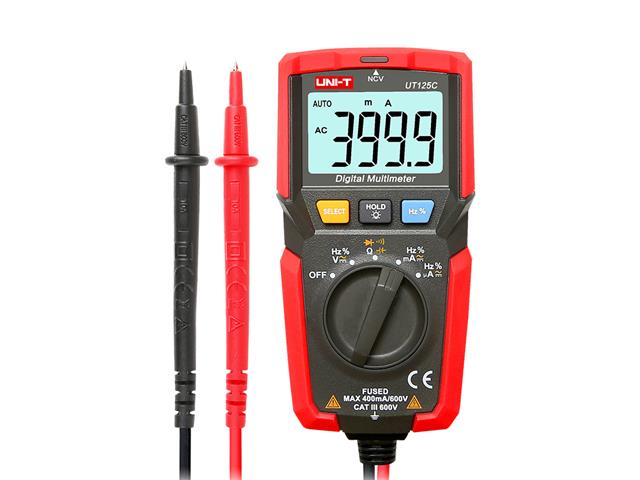

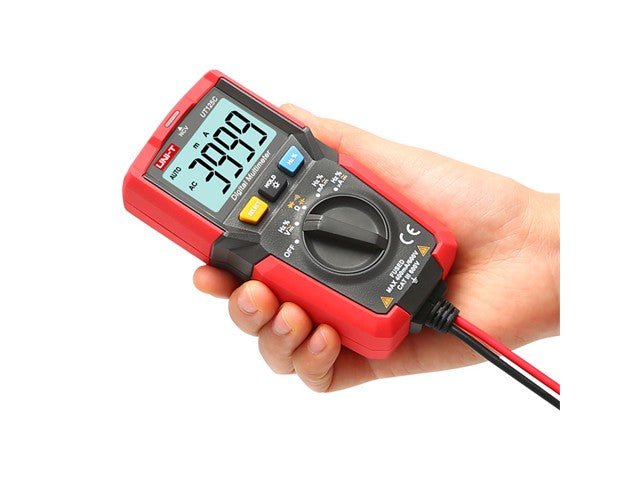

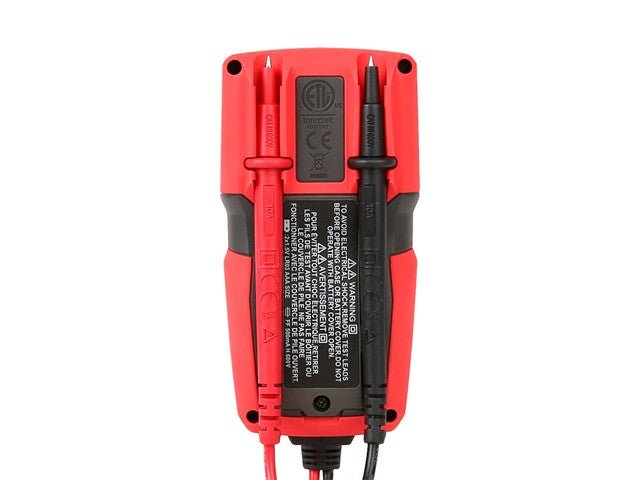

Pocket Size Digital Multimeter
Features
- Small size, easy to carry and operate
- 600V DC/AC voltage measurement
- 400mA DC/AC current measurement
- Resistance/Capacitance/Diode/Continuity test
- Frequency/Duty cycle measurement
- CE (EMC, LVD, RoHS), cETLus
- CAT III 600V
- 1m drop test
Specifications
| DC voltage (V) |
600V |
±(0.5%+5) |
| AC voltage (V) |
600V |
±(1.2%+5) |
| DC current (A) |
400mA |
±(1.8%+5) |
| AC current (A) |
400mA |
±(2%+8) |
| Resistance (Ω) |
40MΩ |
±(1%+5) |
| Capacitance (F) |
100μF |
±(4%+10) |
| Frequency (Hz) |
10Hz~60kHz |
±(0.1%+5) |
| Duty cycle |
20%~80% |
Reference |
| Features |
| NCV |
|
Yes |
| Diode test/Continuity test |
|
Yes |
| Low battery indication |
|
Yes |
| Data hold/Auto power off |
|
Yes |
| Operating temperature |
0℃~50℃ |
| General Characteristics |
| Power |
1.5V battery (R03) x 2 |
| Display |
38mm x 23mm |
| Product color |
Red and grey |
| Product net weight |
180g |
| Product size |
112mm x 58mm x 35mm |
| Standard accessories |
Batteries |
| Standard individual packing |
Gift box, English manual |
| Standard quantity per carton |
60pcs |
| Standard carton measurement |
500mm x 290mm x 280mm |
| Standard carton gross weight |
13.1kg |
Downloads
Additional Information
| Device |
Digital Multimeter |
| Type |
600V AC/DC | 400MA AC/DC , |
