Product Details

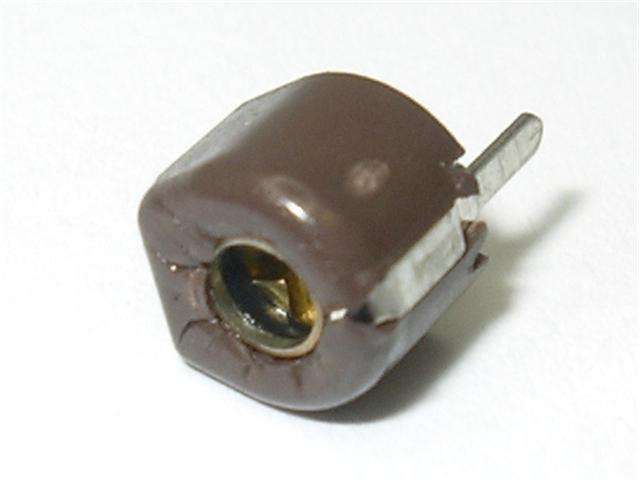

Trimmer Chip Capacitor Brown Stator/Case • PCB • 9.8pF - 60pF • 100V
Overview
Features
Specification
Â
- C min. (max.) (pF) : 9.8
- C max.(pF) : 60.0 +50/-0%
- TC : N1200±500ppm/°C
- Q : 300min. at 1MHz, Cmax.
- Rated Voltage : 100Vdc
- Withstanding Voltage : 220Vdc
- Stator/Case Color : Brown
| Dielectric | Ceramic |
| Capacitance Range | 9.8pF to 60pF |
| Rated Voltage | 100V |
| Termination | PCB |
