• 4MP Super-High Definition: The camera comes with 4MP–more than enough pixels to pick up some of the more discrete details.
• 24h Full-Color: Obtain 24-hour color details, even in pitch-black conditions, with its large-aperture lens, high-sensitivity sensor, and attached supplemental lights.
• Human & Vehicle Classification: Distinguishes humans and vehicles from other objects, so you receive more accurate event notifications.
• Smart Detection: Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, obstructs the camera, or removes/abandons objects.
• Active Defense: Warn potential intruders instantly with sound and light when abnormal events.
• Two-Way Audio: Intelligently detect activities, inform you instantly and response automatically by smart detection and two-way audio.
• H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
• Smart Video Enhancement: VIGI's professional technologies process videos to greatly improve their quality that is vital to your monitoring, including Smart IR, WDR, 3D DNR, and Night Vision.
• IP67 Waterproof: Reliable IP67 for stable outdoor performance.
• PoE/12V DC: Two types of power supply not only give you more convenience but also make your wiring remarkably easy.
• Flexible Management and Storage: Take full control over your security via four management methods: the web UI, NVR UI, VIGI app, and VIGI Security Manager. Local storage is available for each method, as well as onboard storage with SD card slot (up to 256GB).

Camera

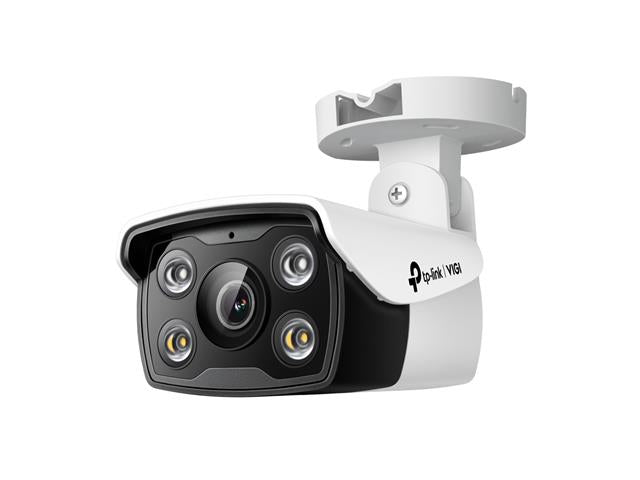

• Product Model: VIGI C340
• Image Sensor: 1/3” Progressive Scan CMOS
• Min. Illumination: Color: 0.005 Lux; 0 Lux with IR/white light
• Day & Night: IR Cut Filter
• Digital Noise: Reduction 3D DNR
• WDR: DWDR

Lens

• Focal Length: 4 mm
• Aperture: 4 mm: F1.6
• Focus: Fixed
• FOV:4mm Horizontal FOV: 80°, Vertical FOV: 43.2°, Diagonal FOV: 94.2°
• Lens Mount: M12

Illuminator

• IR LED- Quantity: 2
              Range: 30m
              Wavelength: 850nm
• White LED:  Quantity: 2
                    Range: 30m
• Compression Standard
• Video Compression Main Stream: H.265+/H.265/H.264+/H.264
•                             Sub-Stream: H.265/H.264
• H.264 Type: Main Profile/High Profile
• H.264+: Main Stream Supported
• H.265 Type :Main Profile
• H.265+: Main Stream Supported
• Video Bit Rate :Main Stream: 256 Kbps to 4 Mbps

                       Sub-Stream: 64 Kbps to 512 Kbps

Alarm and Event Management

• Smart Event: Human & Vehicle Classification, Area Intrusion Detection, Line-Crossing Detection, PeopleDetection, Vehicle Detection, Region Entering
  Detection, Region Exiting Detection, ObjectAbandoned Detection, Object Removal Detection
• Basic Event Motion Detection, Video Tampering Detection, Exception ( Illegal Login)
• Alarm Linkage Memory Card Video Recording, Message Push, Audible Warning, White Light Flashing
• Linkage Method N/A
• Output Notification Message Push


• Max. Resolution 2560 X 1440
• Main Stream: Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps,30fps
                      Resolution: 2560x1440, 2304x1296, 2048x1280,1920x1080, 1280x720
• Sub-Stream :Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps
                     Resolution: 640x480, 352x288, 320x240
• Image Enhancement BLC/3D DNR/HLC/SmartIR
• Image Settings Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance, Prevent Overexposure to Infrared Light, HLC Adjustable by Client Software, Rotation(90°/270°)
• Day/Night Switch Day/Night/Auto/Schedule-Switch
• Privacy Mask Up to 4 Masks

Network

• Protocols TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS
• Network Storage NAS (NFS, SMB/ CIFS)
• API Open Network Video Interface (Profile S)
• Web Browser: Google Chrome® 57 and above
                      Firefox® 52 and above
                      Safari® 11 and above
                      Microsoft® Edge 91 and above
• Security Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication
• Simultaneous Live View Up to 6 Channels
• Client VIGI App, VIGI Security Manager, VIGI NVR, Web
• Cloud Yes
• ONVIF Yes

Interface

• Network Interface 1 RJ45 10/100M Self-Adaptive Ethernet Port, PoE
• On-board Storage Built-In Memory Card Slot, Support MicroSD Card, Up to 256 GB
• Built-in Speaker Yes
• Built-in Microphone Yes
• Audio Output N/A
• Alarm N/A
• Reset Button Yes

General

• Operating Temperature -30–60 °C
• Power Supply 12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0)
• Power Consumption 12V DC: Max 7W PoE: Class 0
• Audio Communication Two-Way Audio
• Ingression Protection IP67
• Material Plastic
• Product Dimensions 174*78*70 mm
• Certifications CE, RCM, BSMI, VCCI, RoHS, NTRA, KC

1. Datasheet-C340 4MM
