• 802.11ac for up to 867 Mbps on the 5 GHz wireless data rate.^*1
• Ideal for long-range wireless transmission up to 1 km.^*2
• Auto-pairing and agile LEDs for efficient deployment.
• 3× Gigabit Ethernet ports for more high-speed IP camera connections.^*6
• Supports Omada SDN for remote and centralized management.
• IP65 weatherproof enclosure and 6kV lightning protection ensure all-weather suitability.^*3
• Supports Passive PoE for flexible deployment (adapter included).

HARDWARE FEATURES

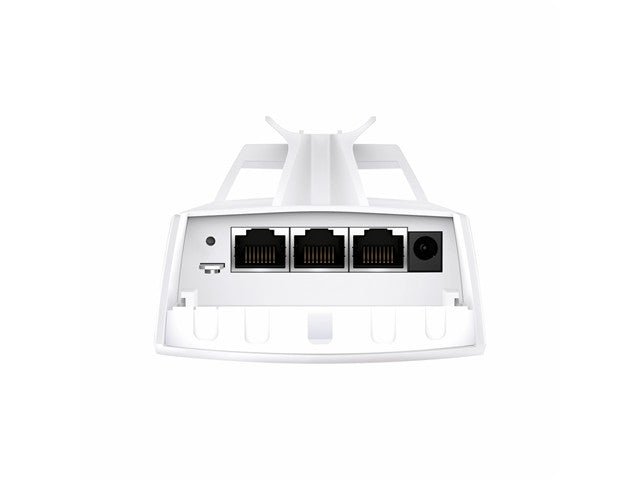

• Interface: 3x Gigabit Ethernet Ports*6
• Button: Reset
• Power Supply: 12V DC / 24V Passive PoE (Passive PoE adapter included.)
• Power Consumption: 11.5W
• Dimensions ( W x D x H ): 3.1 x 2.4 x 8.8 in (79 × 60 × 224 mm)
• Antenna: Internal 2×2 Dual-polarized directional MIMO antennas, 5 GHz: 7.0 dBi, Horizontal:70°, Vertical: 70°
• Weatherproof Enclosure: IP65
• Mounting: Pole Mounting (Accessories included)

WIRELESS FEATURES

• Coverage: 1000m(3280ft)5
• Wireless Standards: IEEE 802.11 a/b/g/n/ac
• Frequency: 5 GHz
• Signal Rate: 5 GHz: Up to 867 Mbps
• Wireless Functions: • Mesh*4 • MU-MIMO: 5G 2x2 MU-MIMO DL • Load Balance • Seamless Roaming(802.11r) • Beamforming • Airtime Fairness • Multiple SSIDs:8 • Wireless Statistics • Wireless Schedule • Reboot Schedule • RADIUS Accounting • MAC Authentication • Static IP/Dynamic IP
• Wireless Security: • VLAN • Access Control • Rogue AP Detection • Captive Portal Authentication*4 • Maximum number of MAC Filter: 4,000 • WPA-Personal/Enterprise, WPA2-Personal/Enterprise
• Transmission Power: • CE: <23dBm (5 GHz, band 1/2, EIRP); <30dBm (5 GHz band3, EIRP); • FCC: <22dBm (5 GHz band1/4)

MANAGEMENT FEATURES

• Omada App: Yes
• Restore & Backup: Yes
• Firmware update via Web: Yes
• NTP: Yes
• Centralized Management: • Omada Hardware Controller (OC300) • Omada Hardware Controller (OC200) • Omada Software Controller • Omada Cloud-Based Controller
• Cloud Access: Yes. Require the use of OC300, OC200, the Omada Software Controller, or Omada Cloud-Based Controller.
• LED ON/OFF Control: Yes
• Management MAC Access Control: Yes
• SNMP: v1, v2c, v3
• SSH: Yes
• Web-based Management: Yes

OTHERS

• Certification: CE, FCC, RoHS
• Package Content: • EAP211-Bridge KIT • Passive PoE Adapter • Power Cord • Installation Guide • Mounting Kit
• Environment: • Operating Temperature: -40 °C–70 °C (-40 °F–158 °F); • Storage Temperature: -40 °C–70 °C (-40 °F–158 °F); • Operating Humidity: 10%–90% non-condensing; • Storage Humidity: 5%–90% non-condensing
