Product Details
TP-LINK OMADA Wireless N Outdoor Access Point , Fast Wi-Fi: Up to 300Mbps Wi-Fi with 2×2 MIMO , 1× Fast Ethernet (RJ45) Port (Support 48V Passive PoE/802.3af PoE) , Power:4.11W , 46×26.7×214.9mm, IP65

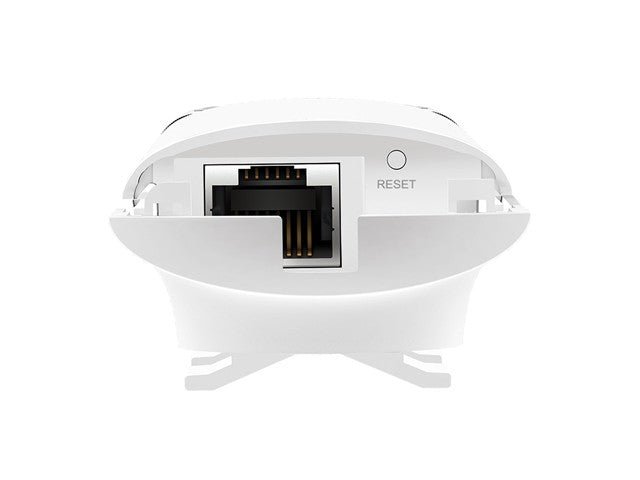

TP-LINK OMADA Wireless N Outdoor Access Point
Specifications
- Manufacturer: TP-Link;
- Part Number: EAP113 Outdoor;
- Product Family: Omada Outdoor Access Points;
- Device Type: Outdoor Wireless Access Point;
- Wireless Standard: IEEE 802.11 b/g/n;
- Frequency Band: 2.4 GHz;
- Maximum Data Rate: Up to 300 Mbps;
- MIMO Technology: 2×2 MIMO;
- Ethernet Port: 1 × 10/100 Mbps RJ-45 (PoE supported);
- Power Supply: 48 V Passive PoE; 802.3af PoE;
- Maximum Power Consumption: 4.11 W;
- Antenna Type: 2 × External Omni-directional Antennas;
- Antenna Gain: 3 dBi each;
- Wireless Coverage Range: Up to 200 m (outdoor typical);
- Weather Protection Rating: IP65 (weatherproof enclosure);
- Mounting Options: Pole mount; Wall mount;
- Concurrent Clients: 100+ users;
- SSID Support: Up to 8 SSIDs;
- Security Features: WPA/WPA2; MAC filtering; VLAN; Guest authentication;
- Dimensions (Approx.): 214.9 × 46 × 37.7 mm;
- Operating Temperature: −30 °C to +65 °C;
- Typical Application: Outdoor Wi-Fi coverage for campuses, warehouses, gardens, and industrial yards;
Downloads
Additional Information
| Device | Access Point |
| Type | TP-LINK | OMADA | Wireless | N | Outdoor | Access | Point |
