Product Details
OP AMP Quad BIFET Low Power
Specifications
|
Amplifier Type
|
J-FET |
|
Number of Circuits
|
4
|
|
Slew Rate
|
13V/µs
|
|
Gain Bandwidth Product
|
3 MHz
|
|
Current - Input Bias
|
30 pA
|
|
Voltage - Input Offset
|
3 mV
|
|
Current - Supply
|
1.4mA (x4 Channels)
|
|
Current - Output / Channel
|
10 mA
|
|
Voltage - Supply Span (Min)
|
10 V
|
|
Voltage - Supply Span (Max)
|
30 V
|
|
Operating Temperature
|
0°C ~ 70°C
|
|
Mounting Type
|
Through Hole
|
|
Package / Case
|

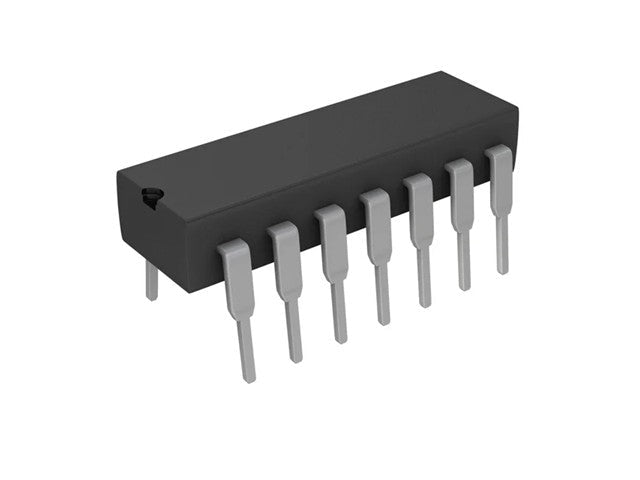

14-DIP (0.300", 7.62mm)
|
|
Supplier Device Package
|
14-PDIP
|
Downloads
Additional Information
| Device | IC |
