Product Details

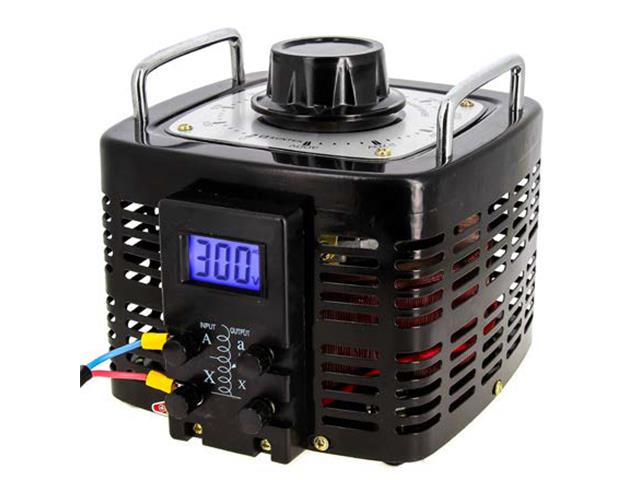

Variac I=220/230VAC O=0-300VAC 2A Enclosed - Single Phase with LED Display (H=140 x W=130 x D=150) 3,5Kg
2A Enclosed Single Phase Variac
Specifications
- Rated power, VA :500
- Maximum current, A :2
- Operating input voltage range, V : 0-250
- Nom. output voltage range, V: 0-300
- Output voltage error,%: Less than 1%
- Warranty: 2 years
- Distortion sine wave: missing
- Connection option: Terminals (connection kit)
- Operating range t ° C: -5 - +50
- Cooling: passive
- Network Connection Method: terminals
- Housing: metal
- Overall dimensions h-v-cm: 14x13x15
- Weight, kg: 3.5
Downloads
Additional Information
| Device | Variac |
| Type | 2A | Enclosed | Single Phase |
