Product Details

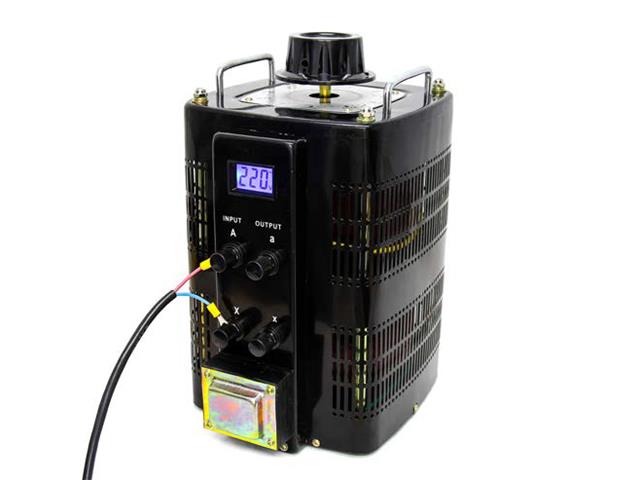

Variac I=220/230VAC O=0-300VAC 60A Enclosed - Single Phase with LED Display (H=400 x W=320 x D=560) 53Kg
60A Enclosed Single Phase Variac
Specifications
- Rated power, VA :15000
- Maximum current, A :60
- Operating input voltage range, V : 0-250
- Nom. output voltage range, V: 0-300
- Output voltage error,%: Less than 1%
- Warranty: 2 years
- Distortion sine wave: missing
- Connection option: Terminals (connection kit)
- Operating range t ° C: -5 - +50
- Cooling: passive
- Network Connection Method: terminals
- Housing: metal
- Overall dimensions h-v-cm: 39.5х32х56
- Weight, kg: 53
Downloads
Additional Information
| Device | Variac |
| Type | 60A | Enclosed | Single Phase |
