Product Details

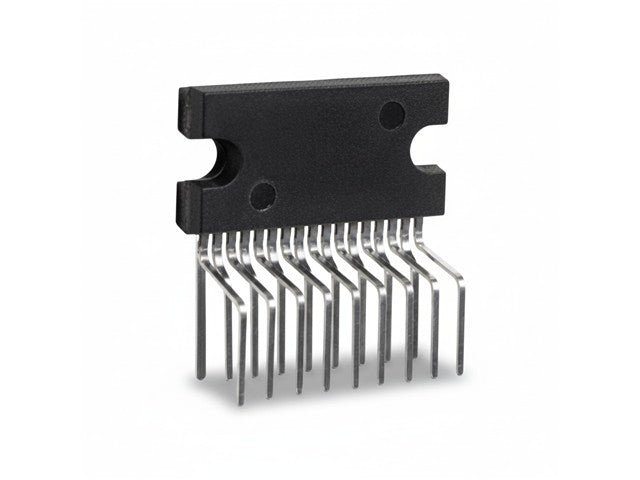

POWAMP 2CH 2X12W 6-18V SIL13
Specifications
- Supply voltage range: 6 V to 18 V
- Typical operating voltage: 14.4 V
- Maximum non-operating voltage: 28 V
- Load dump protection voltage: 45 V
- Peak output current: 6 A max
- Quiescent current: Typical 75 mA
- Standby current: Typical 1 µA
- Input impedance: Greater than 1 MΩ
- Ripple rejection: Typical 50 dB
- Channel separation: Greater than 40 dB
- Output offset voltage: Less than 50 mV
- Minimum load impedance: 1.6 Ω
Additional Information
| Device | IC |
