Product Details

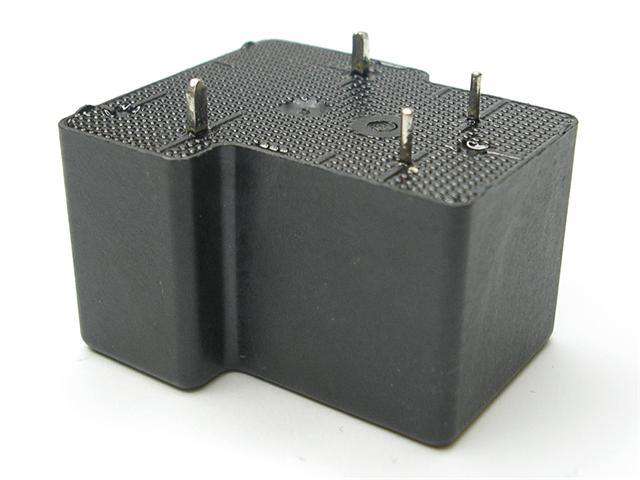

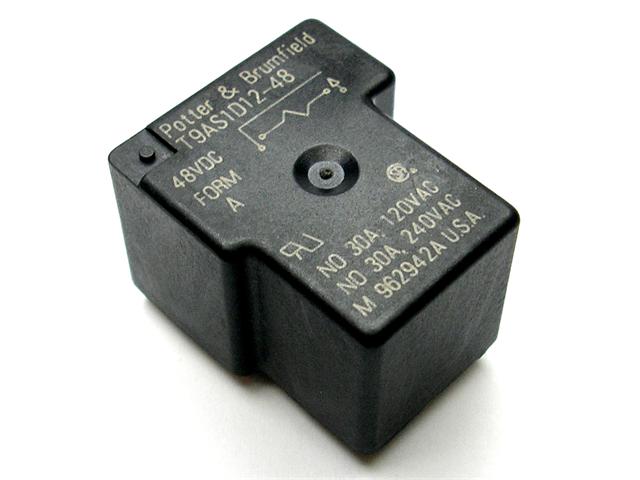

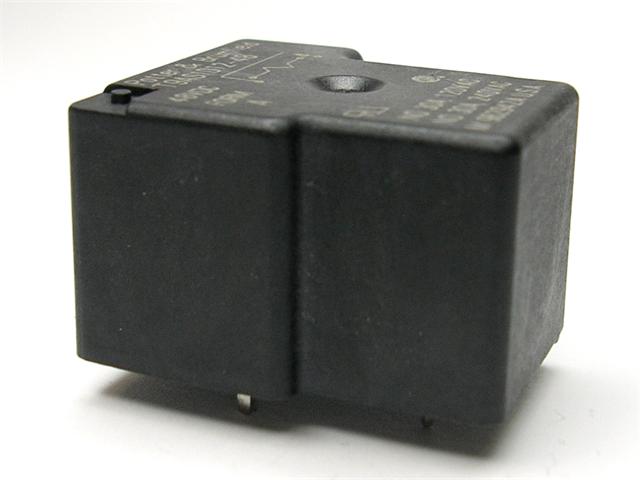

High Power Horizontal PCB Mounted Sealed Relay Form 1A (1n/o) 48VDC 2304 Ohm Coil 30A- 240VAC/20A - 28VDC (40A @ 277VAC/28VDC Max.) - Class F Insulation (1-1393210-9)
Downloads
Additional Information
| Keywords | Relay, Power Relay, |
| Device | Relay |
| Type | Power |
| Contact Form | Form 1A(1NO) |
| Termination | PCB |
| Coil Rated Voltage | 48V |
| AC/DC Voltage | DC |
| Max. Switching Current | 30A |
| Coil Power | 1W Power |
| Coil Resistance | 2304Ω |
| Approvals | UL/CSA |
| Contact Material | AgCdO |
