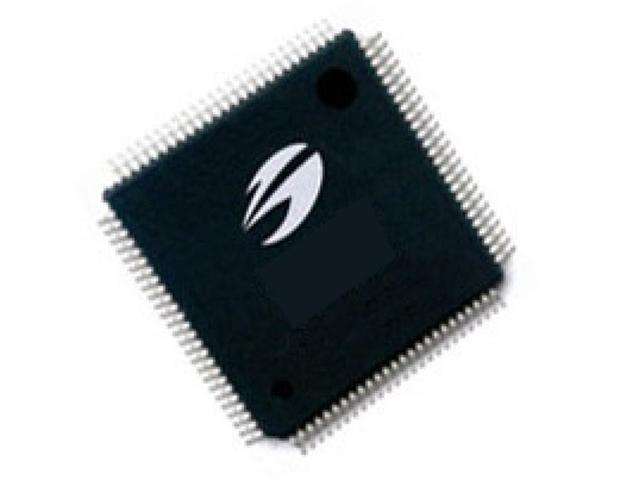

1215KB Embedded Display SRAM LCD Display Controller SSD1963 chip
Overview
SSD1963 is a display controller of 1215K byte frame buffer to support up to 864 x 480 x 24bit graphics content. It also equips parallel MCU interfaces in different bus width to receive graphics data and command from MCU. Its display interface supports common RAM-less LCD driver of color depth up to 24 bit-per-pixel.
Features
- Display feature
- Built-in 1215K bytes frame buffer. Support up to 864 x 480 at 24bpp display
- Support TFT 18/24-bit generic RGB interface panel
- Support 8-bit serial RGB interface
- Hardware rotation of 0, 90, 180, 270 degree
- Hardware display mirroring
- Hardware windowing
- Programmable brightness, contrast and saturation control
- Dynamic Backlight Control (DBC) via PWM signal
- MCU connectivity
- 8/9/16/18/24-bit MCU interface
- Tearing effect signal
- I/O Connectivity
- 4 GPIO pins
- Built-in clock generator
- Deep sleep mode for power saving
- Core supply power (VDDPLL and VDDD): 1.2V±0.1V
- I/O supply power (VDDIO): 1.65V to 3.6V
- LCD interface supply power (VDDLCD): 1.65V to 3.6V
