Product Details

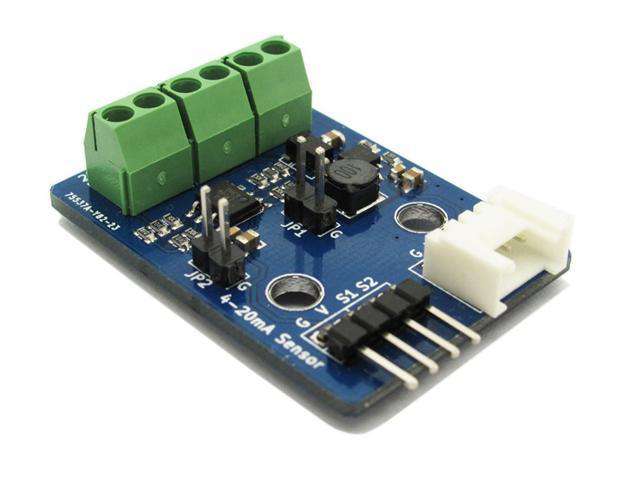

Sensor Breakout Board to test Current Loop 4~20mA with 5~24V DC-DC Power Boost Convertor @150mA
Overview
4~20mA Sensor Brick is an electronic brick module that can be used to test electronic current loop from 4mA to 20mA and support type2,3,4 current output. With a 5V to 24V DC-DC power boost convertor, its max current output can be 150mA, which can be for equipment use.
Features
- Compatible with the mainstream 2.54 and 4-pin Grove interface in market
- Compatible with type2,3,4 electronic current loop With use of M4 standard fixed holes
- Compatible with M4-standard kits such as Lego and Makeblock
Specification
- Brick Type : Sensor Brick
- Brick Interface : 4pin Parallel
- LED Color : Blue
- Weight : 15.00g
- PCB size : 40.6x29x1.6mm
- Power supply : 5VDC
- Compatible interfaces : 2.54 4-pin interface and 4-pin Grove interface(1)
- Power Supply : min-4.5VDC, typ-5VDC max-5.5VDC
- Input measurement current min:4mA, max:20mA
- Output Current(DCDC) : max-150mA
