Product Details

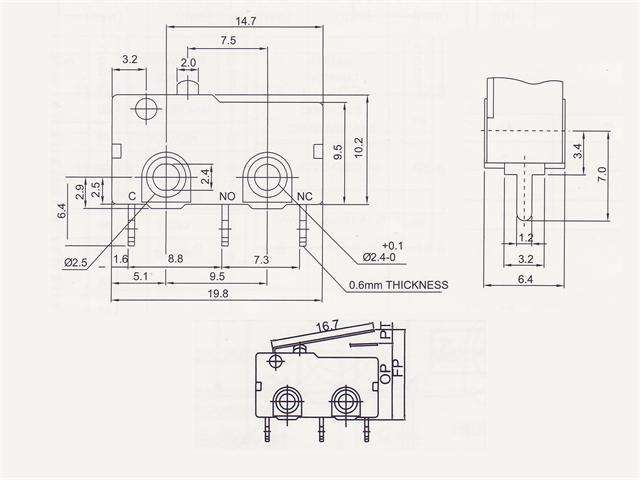

Sub-Miniature Micro Switch • Form : 1C-SPDT(CO) • 5A-250VAC • PCB-Terminal • Standard-Lever Actuator
Overview
Features
Â
- Contact Resistance (initial) : Max. 300mΩ
- Insulation Resistance (at 500VDC/minute) : Min 100MΩ
- Dielectric Strength : AC 1000VAC (50~60Hz)
- Storage Temperature Range : -25°C to 85°C
- Storage Humidity : @ 40°C, Max. 85% R.H
- Vibration : 10~55Hz, displacement 0.75mm (p-p)
- Electrical Service Life : 0.1A - Min.1,000,000 operations
- Other ratings - Min 6,000 operations
- Electrical Operating Frequency : 0.1A - 120 operations per minute
- Other ratings - 10~30 operations per minute
- Mechanical Service Life : Min 10,000,000 operations
- Mechanical Operating Frequency : 120 operations per minute
Specification
Â
| Transition Style | Momentary |
| Actuator Style | Standard-Lever |
| Termination | PCB-Terminal |
| Switch Circuit | 1C-SPDT(CO) |
| Electrical Rating | 5A-250VAC |
| No.of Poles/Pins | 3Pin |
