Product Details

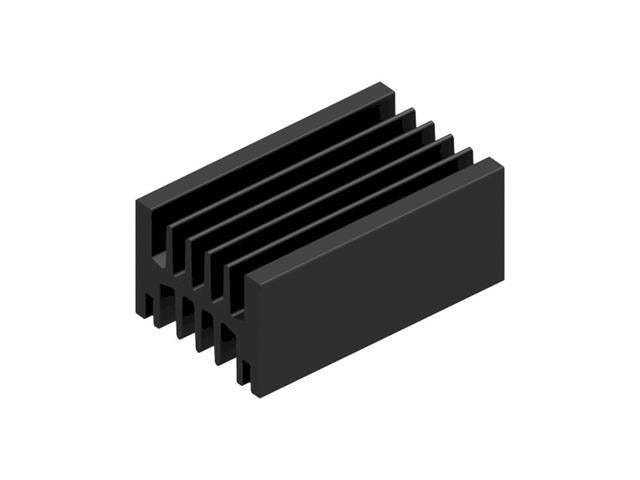

Extruded Heatsinks for PCB Mounting
Extruded Heatsinks for PCB Mounting
Feature
- 46 x 33 mm, profile threads
- Thread channel for M3 screws
- Screw-in solder pin M3 (art. no.: ELS 3)
- Length: 37.5 mm / 50 mm / 75 mm / 94 mm / 100 mm / 1000 mm
Specifications
- Way of fixation : transistor screw mounting
- Width : 46 mm
- Height : 33 mm
- Plate thickness : 3.5 mm
- Length : 75 mm
- Thermal resistance : 5.1 - 2.75 K/W
- surface : black anodised
Additional Information
| Device | Heatsinks |
| Type | for for PCB Mounting |
